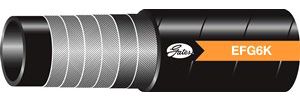

Gates 12EFG6KX25FT - 85468 Hydraulic Hose

SKU 4651-4035
Weight 25.000000
Hose Id (in) 3/4
Max Working Pressure 6000
Min Burst Pressure (psi) 24000
Minimum Bend Radius (in) 4.7
Hose Od (in) 1.24
Up Sell 3 12EFG6KXLL
Cross Sell Gates 12EFG6K Hydraulic Hose Assembly
Brand Gates

Special Order: Typically ships in 5 to 10 business days

$831.91
  • Buy 2 for $820.41 each and save 1%

Sold by the:    25 ft Box

Priced per:    25 ft Box

Packaging Code: T

Same Hose – Purchase in Different Increments:
Title Sold By The Priced Per Purchase in Increments of
Gates 12EFG6KXCTN - 70839 Hydraulic Hose Carton ft 100 ft
Gates 12EFG6KXFT - 70839 Hydraulic Hose ft ft
Gates 12EFG6KXLL - 70736 Hydraulic Hose Carton ft 200 ft
Gates 12EFG6K Product Features:
Use: Extremely High Pressure
Recommended For: Extremely high-pressure, high-impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20), and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths.
Cover: Black, oil resistant, synthetic rubber (Polychloroprene - Type A). Color coded layline. Also available with unique abrasion resistant MegaTuff® cover. See Hose Stock Characteristics.
Reinforcement: Four (six for -20, -24 and -32) alternating layers of spiraled, high-tensile steel.
Tube: Black, oil resistant, synthetic rubber (Nitrile - Type C). See Hose Stock Characteristics.
Temperature Range: -40°F to +250°F (-40°C to +121°C). For water emulsions see Temperature Limits Table.
Meets These Agency Specifications: ABS - American Bureau of ShippingDNV - Det Norske Veritas (North Sea Floating Vessels), InternationalGL - Germanischer Lloyd's, InternationalDOT - Department of Transportation, USAMSHA 2G - Mine Safety & Health Administration, USAAS - Australian StandardBV - Bureau Veritas (Marine Division), InternationalFRAS - Fire Retardant Anti Static, AustraliaLR - Lloyd's Register, InternationalUSCG - United States Coast GuardSAE - Society of Automotive EngineersISO - International Standards OrganizationEN - European Norm
Standard Industry Specifications: EN 856 4SP/4SHSAE 100R15ISO 3862 R15
This Product Replaces the Following:
Product ID:46514035 Product Name:85468 12EFG6KX25FT
