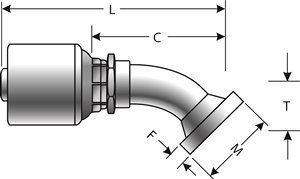

Gates 12G-16FL45S - G25306-1216 Hydraulic Hose Fitting
| SKU | 7103-27315 |
|---|---|
| Weight | 0.900000 |
| L Length (in) | 4.9 |
| L Length (mm) | 124.5 |
| T Drop (in) | 1.1 |
| T Drop (mm) | 28 |
| C Cutoff (in) | 2.89 |
| C Cutoff (mm) | 73.5 |
| F Flange Head Thickness (in) | 0.32 |
| F Flange Head Thickness (mm) | 8.1 |
| M Flange Diameter (in) | 1.75 |
| M Flange Diameter (mm) | 44.5 |
| Part Number 1 | 12G-16FL45S |
| Part Number 2 | G25306-1216 |
| Hose Id (in) | 3/4 |
| Hose Id (mm) | 19.1 |
| Brand | Gates |
| Manufacturer | Gates |
Typically in Stock - Ships in 1 business day
$58.92
- Buy 5 for $54.60 each and save 7%
- Buy 10 for $51.05 each and save 13%
- Buy 20 for $49.17 each and save 17%
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 12M2T Hydraulic Hose Assembly | 3/4 | 1.11 | 3500 | 14000 | 3.8 |
| Gates 12M4K Hydraulic Hose Assembly | 3/4 | 1.17 | 4000 | 16000 | 3.8 |
This Product Replaces the Following:
Product ID:710327315
Product Name:G25306-1216 12G-16FL45S
Product ID: 710004175 Product Name:G25307-1216 12G-16FL45
UPC: 72053987287
Product ID: 710004175 Product Name:
UPC: 72053987287
