Gates 12G2XHX50FT - 85802 Hydraulic Hose

SKU	4657-4012
Weight	32.000000
Hose Id (in)	3/4
Max Working Pressure	3100
Min Burst Pressure (psi)	12400
Minimum Bend Radius (in)	9.5
Hose Od (in)	1.15
Brand	Gates

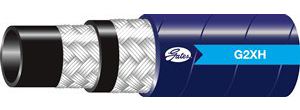

main product photo

Skip to the beginning of the images gallery

Special Order: Typically ships in 5 to 10 business days

$897.37

Buy 2 for $889.71 each and save 1%

Sold by the: 50 ft Box

Priced per: 50 ft Box

Packaging Code: T

Same Hose – Purchase in Different Increments:

Title	Sold By The	Priced Per	Purchase in Increments of
Gates 12G2XHXREEL - 70909 Hydraulic Hose	Reel	ft	220 ft

Recommended Couplings:

MegaCrimp® Couplings, Field Attachable Type T for G2 Hose (2 Wire), GlobalSpiral™ Couplings or Stainless Steel Couplings "B" Series

Gates 12G2XH Product Features:

Use:	High Pressure
Recommended For:	Extremely high-temperature high-pressure hydraulic applications where pressure or temperature requirements exceed SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN or where resistance to either petroleum-base or phosphate ester fluids is required. Meets SAE J1942 requirements.
Cover:	Blue, oil and abrasion resistant, thin synthetic rubber CSM - Type M.
Reinforcement:	Two braids of high-tensile steel wire.
Tube:	Black, oil and chemical resistant, synthetic rubber (CPE - Type J).
Temperature Range:	Petroleum-base fluids: -40°F to +300°F (-40°C to +149°C). Phosphate esters fluids as recommended by the fluid manufacturer, but within a range of -40°F to +212°F. For water emulsions: Max. +225°F Pressure lines, Max +180°F Return lines.
Meets These Agency Specifications:	DIN - Deutsch Industry Norm, InternationalMSHA 2G - Mine Safety & Health Administration, USAFRAS - Fire Retardant Anti Static, AustraliaUSCG - United States Coast GuardSAE - Society of Automotive EngineersISO - International Standards OrganizationEN - European Norm
Standard Industry Specifications:	EN 853 2SNSAE 100R2 Type SISO 1436 2SN R2

This Product Replaces the Following:

Product ID:46574012 Product Name:85802 12G2XHX50FT

Search

My Cart

Package Code	Standard Bulk Hose Packaging Description
A	Qty ± 20%, 50% In Lengths 40Ft. & Longer, Minimum Length of 10Ft., 2 Lengths Under 20 Ft. Allowed, Maximum of 3 Lengths.
B	Qty ± 10 Ft., Minimum Length of 5 Ft., Maximum of 2 Lengths.
C	Qty ± 10%, 50% In Lengths 40 Ft. & Longer, 50% In Lengths of 10 Ft. to 39 Ft.
D	Qty ± 10%, 65% In Lengths Longer Than 45 Ft., Minimum Length of 10 Ft., 2 Lengths Under 20 Ft. Allowed, Maximum of 6 Lengths.
E	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 4 Lengths.
F	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 3 Lengths.
G	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 4 Lengths.
H	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 3 Lengths.
I	Qty ± 20 Ft., Minimum Length of 20 Ft., 1 Length 40 Ft. or Longer, Maximum of 3 Lengths.
J	Size 3/16" through 3/4" 450 - 650 ft per reel/min of 1 lgth - max of 4 lgths per reel/one lgth less than 100 ft/min lgth 15 ft allowed
	Sizes above 3/4" 400 - 350 ft per reel/min of 1 lgth - max of 3 lgths per reel/one lgth less than 100 ft/min lgth of 15 ft allowed
K	Qty ± 20%, 65% In Lengths Longer Than 45 Ft., 25% In Lengths 25 Ft. to 45 Ft., 10% In Lengths 5 Ft. to 25 Ft., Maximum of 4 Lengths.
L	Qty ± 10%, Minimum Length of 25 Ft., Maximum of 3 Lengths.
M	Qty: ± 20%, Maximum of 2 Lengths, Minimum Length of 50 Feet.
N	Qty ± 0 Ft., Maximum of 2 Lengths, Minimum Length of 10 Feet.
O	One Continuous Length Between 121'-200'.
P	Hose Size> Max 2 Cont Lgths Per Reel
	3/16" 200 ft. x 2 =400 ft
	1/4" 175 ft. x 2 =350 ft
	5/16" 150 ft. x 2 =300 ft
	13/32" 125 ft. x 2 =250 ft
	1/2" 100 ft. x 2 = 200 ft
	5/8" 75 ft. x 2= 150 ft
	7/8" 50 ft. x 2= 100 ft
Q	*Qty: Maximum 1 Continuous Length +/-10%.
R	Hose lengths shall be as long as possible, minimum length is 25 ft. Hose will be stacked on pallets in bales, stretch wrapped and banded.
S	Minimum length of 50 ft., any number of pieces. All lengths to be in 50 ft. increments (i.e. 50,100, 150 etc.)
T	Packaged one continuous length per each or per container.
U	± 10% Minimum Length 15 ft., Maximum of 3 Lengths.
V	Qty +/ 0, 65% in lengths longer than 45 ft., minimum length of 10 ft., 2 lengths under 20 ft. allowed, maximum of 6 lengths.
