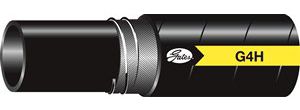

Gates 12G4HX25FT - 85580 Hydraulic Hose

SKU	3105-0027
Weight	10.770000
Hose Id (in)	3/4
Max Working Pressure	300
Min Burst Pressure (psi)	1200
Minimum Bend Radius (in)	2.5
Hose Od (in)	1.17
Vacuum In Hg	25
Brand	Gates

Skip to the beginning of the images gallery

Out Of Stock

$0.00

Sold by the: 25 ft Box

Priced per: 25 ft Box

Packaging Code: T

Same Hose – Purchase in Different Increments:

Title	Sold By The	Priced Per	Purchase in Increments of
Gates 12G4HXCTN - 70133 Hydraulic Hose	Carton	ft	100 ft

Recommended Couplings:

Gates 12G4H Product Features:

Low Pressure

Recommended For:

Petroleum and water-base hydraulic fluids in suction lines or in low-pressure return lines. Meets or exceeds requirements of SAE 100R4 (except 1" I.D.). Uses half the bend radius of SAE 100R4.

Cover:

Black synthetic rubber is oil and abrasion resistant (Neoprene - Type A). See Hose Stock Characteristics.

Reinforcement:

Double spiral textile reinforced with a helical spiral-wire to prevent collapse.

Tube:

Black, synthetic rubber is specifically designed for resistance to high temperatures (Nitrile - Type C). See Hose Stock Characteristics.

Temperature Range:

-40°F to +275°F (-40°C to +135°C) constant and +300°F (+149°C) intermittent (up to 10% of operating time). For water emulsions see Temperature Limits Table.

Meets These Agency Specifications:

ABS - American Bureau of Shipping (to be used with fire sleeve)DIN - Deutsch Industry Norm, InternationalMSHA 2G - Mine Safety & Health Administration, USASAE - Society of Automotive Engineers

Standard Industry Specifications:

SAE 100R4 except for 1"

This Product Replaces the Following:

Product ID:31050027 Product Name:85580 12G4HX25FT

Package Code	Standard Bulk Hose Packaging Description
A	Qty ± 20%, 50% In Lengths 40Ft. & Longer, Minimum Length of 10Ft., 2 Lengths Under 20 Ft. Allowed, Maximum of 3 Lengths.
B	Qty ± 10 Ft., Minimum Length of 5 Ft., Maximum of 2 Lengths.
C	Qty ± 10%, 50% In Lengths 40 Ft. & Longer, 50% In Lengths of 10 Ft. to 39 Ft.
D	Qty ± 10%, 65% In Lengths Longer Than 45 Ft., Minimum Length of 10 Ft., 2 Lengths Under 20 Ft. Allowed, Maximum of 6 Lengths.
E	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 4 Lengths.
F	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 3 Lengths.
G	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 4 Lengths.
H	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 3 Lengths.
I	Qty ± 20 Ft., Minimum Length of 20 Ft., 1 Length 40 Ft. or Longer, Maximum of 3 Lengths.
J	Size 3/16" through 3/4" 450 - 650 ft per reel/min of 1 lgth - max of 4 lgths per reel/one lgth less than 100 ft/min lgth 15 ft allowed
	Sizes above 3/4" 400 - 350 ft per reel/min of 1 lgth - max of 3 lgths per reel/one lgth less than 100 ft/min lgth of 15 ft allowed
K	Qty ± 20%, 65% In Lengths Longer Than 45 Ft., 25% In Lengths 25 Ft. to 45 Ft., 10% In Lengths 5 Ft. to 25 Ft., Maximum of 4 Lengths.
L	Qty ± 10%, Minimum Length of 25 Ft., Maximum of 3 Lengths.
M	Qty: ± 20%, Maximum of 2 Lengths, Minimum Length of 50 Feet.
N	Qty ± 0 Ft., Maximum of 2 Lengths, Minimum Length of 10 Feet.
O	One Continuous Length Between 121'-200'.
P	Hose Size> Max 2 Cont Lgths Per Reel
	3/16" 200 ft. x 2 =400 ft
	1/4" 175 ft. x 2 =350 ft
	5/16" 150 ft. x 2 =300 ft
	13/32" 125 ft. x 2 =250 ft
	1/2" 100 ft. x 2 = 200 ft
	5/8" 75 ft. x 2= 150 ft
	7/8" 50 ft. x 2= 100 ft
Q	*Qty: Maximum 1 Continuous Length +/-10%.
R	Hose lengths shall be as long as possible, minimum length is 25 ft. Hose will be stacked on pallets in bales, stretch wrapped and banded.
S	Minimum length of 50 ft., any number of pieces. All lengths to be in 50 ft. increments (i.e. 50,100, 150 etc.)
T	Packaged one continuous length per each or per container.
U	± 10% Minimum Length 15 ft., Maximum of 3 Lengths.
V	Qty +/ 0, 65% in lengths longer than 45 ft., minimum length of 10 ft., 2 lengths under 20 ft. allowed, maximum of 6 lengths.
