Gates 12GS-12FL90-100 - G20317-1212 Hydraulic Hose Fitting
| SKU | 7347-73905 |
|---|---|
| Weight | 0.860000 |

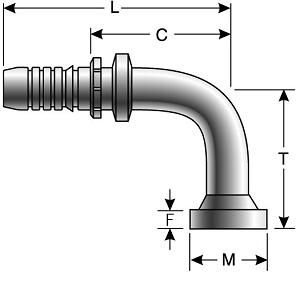

| L Length (in) | 4.41 |
| L Length (mm) | 112 |
| T Drop (in) | 3.94 |
| T Drop (mm) | 100.1 |
| C Cutoff (in) | 2.4 |
| C Cutoff (mm) | 61 |
| F Flange Head Thickness (in) | 0.27 |
| F Flange Head Thickness (mm) | 6.9 |
| M Flange Diameter (in) | 1.5 |
| M Flange Diameter (mm) | 38.1 |
| Up Sell | 7347-7390 |
| Part Number 1 | 12GS-12FL90-100 |
| Part Number 2 | G20317-1212 |
| Hose Id (in) | 3/4 |
| Hose Id (mm) | 19.1 |
| Brand | Gates |
| Manufacturer | Gates |
Special Order: Typically ships in 5 to 10 business days
$67.56
- Buy 5 for $56.30 each and save 17%
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 12EFG6K Hydraulic Hose Assembly | 3/4 | 1.24 | 6000 | 24000 | 4.7 |
| Gates 12EFG5K Hydraulic Hose Assembly | 3/4 | 1.24 | 5000 | 20000 | 4.7 |
| Gates 12EFG4K Hydraulic Hose Assembly | 3/4 | 1.21 | 4000 | 16000 | 4.7 |
Same Coupling – Purchase in Different Increments:
| Fitting Name | Minimum Order Quantity | Order in Increments Of | Price (ea) |
|---|---|---|---|
| Gates 12GS-12FL90-100XBULK - G20317-1212X Hydraulic Hose Fitting | 40 | 40 |
$50.05
|
This Product Replaces the Following:
Product ID:734773905
Product Name:G20317-1212 12GS-12FL90-100
UPC: 72053435016
UPC: 72053435016
