Gates 12GS-12FLC90-128 - G20416-1212 Hydraulic Hose Fitting
| SKU | 7347-76015 |
|---|---|
| Weight | 1.100000 |

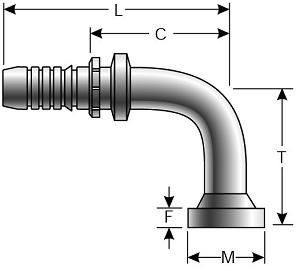

| L Length (in) | 4.61 |
| L Length (mm) | 117.1 |
| T Drop (in) | 5.04 |
| T Drop (mm) | 128 |
| C Cutoff (in) | 2.6 |
| C Cutoff (mm) | 66 |
| F Flange Head Thickness (in) | 0.56 |
| F Flange Head Thickness (mm) | 14.2 |
| M Flange Diameter (in) | 1.63 |
| M Flange Diameter (mm) | 41.4 |
| Part Number 1 | 12GS-12FLC90-128 |
| Part Number 2 | G20416-1212 |
| Hose Id (in) | 3/4 |
| Hose Id (mm) | 19.1 |
| Brand | Gates |
| Manufacturer | Gates |
Special Order: Typically ships in 5 to 10 business days
$77.31
- Buy 5 for $64.43 each and save 17%
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 12EFG6K Hydraulic Hose Assembly | 3/4 | 1.24 | 6000 | 24000 | 4.7 |
| Gates 12EFG5K Hydraulic Hose Assembly | 3/4 | 1.24 | 5000 | 20000 | 4.7 |
| Gates 12EFG4K Hydraulic Hose Assembly | 3/4 | 1.21 | 4000 | 16000 | 4.7 |
This Product Replaces the Following:
Product ID:734776015
Product Name:G20416-1212 12GS-12FLC90-128
UPC: 72053465150
