Gates 12GS-16FL90-178 - G20319-1216 Hydraulic Hose Fitting
| SKU | 7347-79025 |
|---|---|
| Weight | 1.220000 |

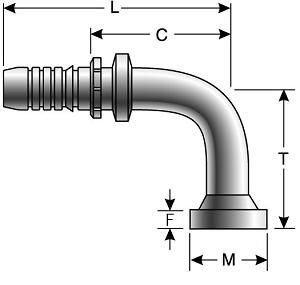

| L Length (in) | 4.41 |
| L Length (mm) | 112 |
| T Drop (in) | 7.01 |
| T Drop (mm) | 178.1 |
| C Cutoff (in) | 2.38 |
| C Cutoff (mm) | 60.5 |
| F Flange Head Thickness (in) | 0.32 |
| F Flange Head Thickness (mm) | 8.1 |
| M Flange Diameter (in) | 1.75 |
| M Flange Diameter (mm) | 44.5 |
| Part Number 1 | 12GS-16FL90-178 |
| Part Number 2 | G20319-1216 |
| Hose Id (in) | 3/4 |
| Hose Id (mm) | 19.1 |
| Brand | Gates |
| Manufacturer | Gates |
Discontinued - No Longer Available
$0.00
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 12EFG6K Hydraulic Hose Assembly | 3/4 | 1.24 | 6000 | 24000 | 4.7 |
| Gates 12EFG5K Hydraulic Hose Assembly | 3/4 | 1.24 | 5000 | 20000 | 4.7 |
| Gates 12EFG4K Hydraulic Hose Assembly | 3/4 | 1.21 | 4000 | 16000 | 4.7 |
This Product Replaces the Following:
Product ID:734779025
Product Name:G20319-1216 12GS-16FL90-178
UPC: 770075393016
UPC: 770075393016
