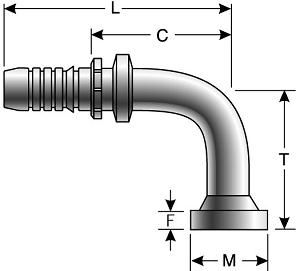

Gates 12GS-16FLH90-140 - G20367-1216 Hydraulic Hose Fitting
| SKU | 7347-76715 |
|---|---|
| Weight | 1.100000 |
| L Length (in) | 4.57 |
| L Length (mm) | 116.1 |
| T Drop (in) | 5.51 |
| T Drop (mm) | 140 |
| C Cutoff (in) | 2.56 |
| C Cutoff (mm) | 65 |
| F Flange Head Thickness (in) | 0.38 |
| F Flange Head Thickness (mm) | 9.7 |
| M Flange Diameter (in) | 1.88 |
| M Flange Diameter (mm) | 47.8 |
| Part Number 1 | 12GS-16FLH90-140 |
| Part Number 2 | G20367-1216 |
| Hose Id (in) | 3/4 |
| Hose Id (mm) | 19.1 |
| Brand | Gates |
| Manufacturer | Gates |
Special Order: Typically ships in 5 to 10 business days
$106.98
- Buy 5 for $94.05 each and save 12%
- Buy 10 for $90.14 each and save 16%
- Buy 20 for $89.40 each and save 16%
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 12EFG6K Hydraulic Hose Assembly | 3/4 | 1.24 | 6000 | 24000 | 4.7 |
| Gates 12EFG5K Hydraulic Hose Assembly | 3/4 | 1.24 | 5000 | 20000 | 4.7 |
| Gates 12EFG4K Hydraulic Hose Assembly | 3/4 | 1.21 | 4000 | 16000 | 4.7 |
This Product Replaces the Following:
Product ID:734776715
Product Name:G20367-1216 12GS-16FLH90-140
UPC: 72053676143
UPC: 72053676143
