Gates 12GS-20FL90-125 - G20317-1220 Hydraulic Hose Fitting
| SKU | 7347-78375 |
|---|---|
| Weight | 1.100000 |

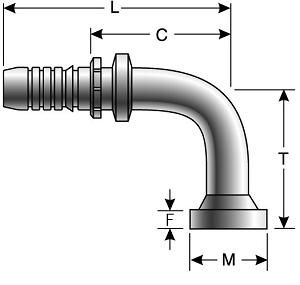

| L Length (in) | 4.76 |
| L Length (mm) | 120.9 |
| T Drop (in) | 4.92 |
| T Drop (mm) | 125 |
| C Cutoff (in) | 2.76 |
| C Cutoff (mm) | 70.1 |
| F Flange Head Thickness (in) | 0.32 |
| F Flange Head Thickness (mm) | 8.1 |
| M Flange Diameter (in) | 2 |
| M Flange Diameter (mm) | 50.8 |
| Part Number 1 | 12GS-20FL90-125 |
| Part Number 2 | G20317-1220 |
| Hose Id (in) | 3/4 |
| Hose Id (mm) | 19.1 |
| Brand | Gates |
| Manufacturer | Gates |
Discontinued - No Longer Available
$0.00
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 12EFG6K Hydraulic Hose Assembly | 3/4 | 1.24 | 6000 | 24000 | 4.7 |
| Gates 12EFG5K Hydraulic Hose Assembly | 3/4 | 1.24 | 5000 | 20000 | 4.7 |
| Gates 12EFG4K Hydraulic Hose Assembly | 3/4 | 1.21 | 4000 | 16000 | 4.7 |
This Product Replaces the Following:
Product ID:734778375
Product Name:G20317-1220 12GS-20FL90-125
UPC: 770075193395
UPC: 770075193395
