Gates 16G-12FL90M - G25315-1612 Hydraulic Hose Fitting
SKU | 7103-29655 |
---|---|
Weight | 1.780000 |

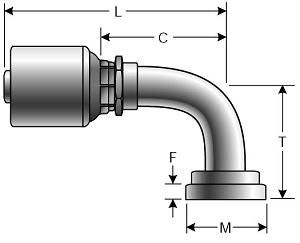

L Length (in) | 5.09 |
L Length (mm) | 129.3 |
T Drop (in) | 2.28 |
T Drop (mm) | 58 |
C Cutoff (in) | 2.85 |
C Cutoff (mm) | 72.5 |
F Flange Head Thickness (in) | 0.27 |
F Flange Head Thickness (mm) | 6.9 |
M Flange Diameter (in) | 1.5 |
M Flange Diameter (mm) | 38.1 |
Part Number 1 | 16G-12FL90M |
Part Number 2 | G25315-1612 |
Hose Id (in) | 1 |
Hose Id (mm) | 25.4 |
Brand | Gates |
Manufacturer | Gates |
Special Order: Typically ships in 5 to 10 business days
$66.73
- Buy 5 for $61.30 each and save 8%
- Buy 10 for $57.53 each and save 14%
- Buy 20 for $55.61 each and save 17%
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
---|---|---|---|---|---|
Gates 16M2T Hydraulic Hose Assembly | 1 | 1.39 | 2500 | 10000 | 4.5 |
Gates 16GMV Hydraulic Hose Assembly | 1 | 1.45 | 300 | 1200 | 3 |
This Product Replaces the Following:
Product ID:710329655
Product Name:G25315-1612 16G-12FL90M
UPC: 72053604733
UPC: 72053604733
