Gates 16G-20FL45S - G25306-1620 Hydraulic Hose Fitting
| SKU | 7103-27475 |
|---|---|
| Weight | 1.400000 |

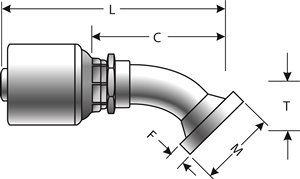

| L Length (in) | 5.87 |
| L Length (mm) | 149 |
| T Drop (in) | 1.26 |
| T Drop (mm) | 32 |
| C Cutoff (in) | 3.63 |
| C Cutoff (mm) | 92.2 |
| F Flange Head Thickness (in) | 0.32 |
| F Flange Head Thickness (mm) | 8.1 |
| M Flange Diameter (in) | 2 |
| M Flange Diameter (mm) | 50.8 |
| Part Number 1 | 16G-20FL45S |
| Part Number 2 | G25306-1620 |
| Hose Id (in) | 1 |
| Hose Id (mm) | 25.4 |
| Brand | Gates |
| Manufacturer | Gates |
Typically in Stock - Ships in 1 business day
$69.15
- Buy 5 for $63.35 each and save 8%
- Buy 10 for $59.53 each and save 14%
- Buy 20 for $57.63 each and save 17%
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 16M2T Hydraulic Hose Assembly | 1 | 1.39 | 2500 | 10000 | 4.5 |
| Gates 16GMV Hydraulic Hose Assembly | 1 | 1.45 | 300 | 1200 | 3 |
This Product Replaces the Following:
Product ID:710327475
Product Name:G25306-1620 16G-20FL45S
Product ID: 710004195 Product Name:G25307-1620 16G-20FL45
UPC: 72053987294
Product ID: 710004195 Product Name:
UPC: 72053987294
