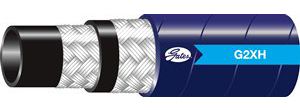

Gates 16G2XHXREEL - 70878 Hydraulic Hose
SKU | 4657-2546 |
---|---|
Weight | 1.020000 |
Hose Id (in) | 1 |
Max Working Pressure | 2500 |
Min Burst Pressure (psi) | 10000 |
Minimum Bend Radius (in) | 12 |
Hose Od (in) | 1.48 |
Brand | Gates |
Special Order: Typically ships in 5 to 10 business days
$19.24
Same Hose – Purchase in Different Increments:
Title | Sold By The | Priced Per | Purchase in Increments of |
---|---|---|---|
Gates 16G2XHX50FT - 85803 Hydraulic Hose | 50 ft Box | 50 ft Box |
Recommended Couplings:
Gates 16G2XH Product Features:
Use: | High Pressure |
Recommended For: | Extremely high-temperature high-pressure hydraulic applications where pressure or temperature requirements exceed SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN or where resistance to either petroleum-base or phosphate ester fluids is required. Meets SAE J1942 requirements. |
Cover: | Blue, oil and abrasion resistant, thin synthetic rubber CSM - Type M. |
Reinforcement: | Two braids of high-tensile steel wire. |
Tube: | Black, oil and chemical resistant, synthetic rubber (CPE - Type J). |
Temperature Range: | Petroleum-base fluids: -40°F to +300°F (-40°C to +149°C). Phosphate esters fluids as recommended by the fluid manufacturer, but within a range of -40°F to +212°F. For water emulsions: Max. +225°F Pressure lines, Max +180°F Return lines. |
Meets These Agency Specifications: | DIN - Deutsch Industry Norm, InternationalMSHA 2G - Mine Safety & Health Administration, USAFRAS - Fire Retardant Anti Static, AustraliaUSCG - United States Coast GuardSAE - Society of Automotive EngineersISO - International Standards OrganizationEN - European Norm |
Standard Industry Specifications: | EN 853 2SNSAE 100R2 Type SISO 1436 2SN R2 |
This Product Replaces the Following:
Product ID:46572546
Product Name:70878 16G2XHXREEL
Product ID: 46571505 Product Name:70527 16G2AT-HMP
Product ID: 46571505 Product Name:
