Gates 16GS-12FL90M - G20315-1612 Hydraulic Hose Fitting
| SKU | 7347-74535 |
|---|---|
| Weight | 0.860000 |

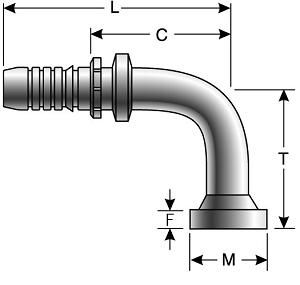

| L Length (in) | 5.31 |
| L Length (mm) | 134.9 |
| T Drop (in) | 2.28 |
| T Drop (mm) | 57.9 |
| C Cutoff (in) | 5.08 |
| C Cutoff (mm) | 129 |
| F Flange Head Thickness (in) | 0.27 |
| F Flange Head Thickness (mm) | 6.9 |
| M Flange Diameter (in) | 1.5 |
| M Flange Diameter (mm) | 38.1 |
| Part Number 1 | 16GS-12FL90M |
| Part Number 2 | G20315-1612 |
| Hose Id (in) | 1 |
| Hose Id (mm) | 25.4 |
| Brand | Gates |
| Manufacturer | Gates |
Special Order: Typically ships in 5 to 10 business days
$67.76
- Buy 5 for $56.46 each and save 17%
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 16EFG6K Hydraulic Hose Assembly | 1 | 1.53 | 6000 | 24000 | 6 |
| Gates 16EFG5K Hydraulic Hose Assembly | 1 | 1.53 | 5000 | 20000 | 6 |
| Gates 16EFG4K Hydraulic Hose Assembly | 1 | 1.5 | 4000 | 16000 | 6 |
This Product Replaces the Following:
Product ID:734774535
Product Name:G20315-1612 16GS-12FL90M
UPC: 770075352945
