Gates 16GS-16FL67M - G20311-1616 Hydraulic Hose Fitting
| SKU | 7347-46555 |
|---|---|
| Weight | 1.220000 |

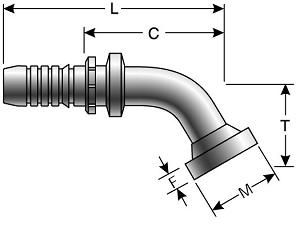

| L Length (in) | 5.94 |
| L Length (mm) | 150.9 |
| T Drop (in) | 2.01 |
| T Drop (mm) | 51.1 |
| C Cutoff (in) | 3.71 |
| C Cutoff (mm) | 94.2 |
| F Flange Head Thickness (in) | 0.32 |
| F Flange Head Thickness (mm) | 8.1 |
| M Flange Diameter (in) | 1.75 |
| M Flange Diameter (mm) | 44.5 |
| Part Number 1 | 16GS-16FL67M |
| Part Number 2 | G20311-1616 |
| Hose Id (in) | 1 |
| Hose Id (mm) | 25.4 |
| Brand | Gates |
| Manufacturer | Gates |
Special Order: Typically ships in 5 to 10 business days
$72.07
- Buy 5 for $65.81 each and save 9%
- Buy 10 for $61.93 each and save 14%
- Buy 20 for $60.06 each and save 17%
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 16EFG6K Hydraulic Hose Assembly | 1 | 1.53 | 6000 | 24000 | 6 |
| Gates 16EFG5K Hydraulic Hose Assembly | 1 | 1.53 | 5000 | 20000 | 6 |
| Gates 16EFG4K Hydraulic Hose Assembly | 1 | 1.5 | 4000 | 16000 | 6 |
This Product Replaces the Following:
Product ID:734746555
Product Name:G20311-1616 16GS-16FL67M
UPC: 72053297270
UPC: 72053297270
