Gates 16GS-24FLH90S - G20364-1624 Hydraulic Hose Fitting
| SKU | 7347-54575 |
|---|---|
| Weight | 2.000000 |

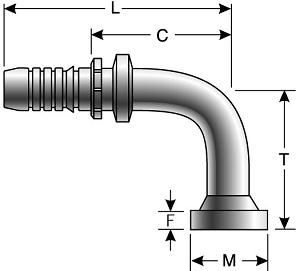

| L Length (in) | 5.28 |
| L Length (mm) | 134.1 |
| T Drop (in) | 3.19 |
| T Drop (mm) | 81 |
| C Cutoff (in) | 3.04 |
| C Cutoff (mm) | 77.2 |
| F Flange Head Thickness (in) | 0.5 |
| F Flange Head Thickness (mm) | 12.7 |
| M Flange Diameter (in) | 2.5 |
| M Flange Diameter (mm) | 63.5 |
| Part Number 1 | 16GS-24FLH90S |
| Part Number 2 | G20364-1624 |
| Hose Id (in) | 1 |
| Hose Id (mm) | 25.4 |
| Brand | Gates |
| Manufacturer | Gates |
Special Order: Typically ships in 5 to 10 business days
$125.14
- Buy 5 for $109.30 each and save 13%
- Buy 10 for $105.41 each and save 16%
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 16EFG6K Hydraulic Hose Assembly | 1 | 1.53 | 6000 | 24000 | 6 |
| Gates 16EFG5K Hydraulic Hose Assembly | 1 | 1.53 | 5000 | 20000 | 6 |
| Gates 16EFG4K Hydraulic Hose Assembly | 1 | 1.5 | 4000 | 16000 | 6 |
This Product Replaces the Following:
Product ID:734754575
Product Name:G20364-1624 16GS-24FLH90S
UPC: 72053449877
UPC: 72053449877
