Gates 20G-20FL30S - G25304-2020 Hydraulic Hose Fitting
| SKU | 7103-26845 |
|---|---|
| Weight | 2.580000 |

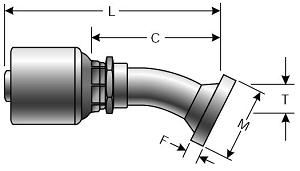

| L Length (in) | 6.04 |
| L Length (mm) | 153.4 |
| T Drop (in) | 0.79 |
| T Drop (mm) | 20 |
| C Cutoff (in) | 3.72 |
| C Cutoff (mm) | 94.4 |
| F Flange Head Thickness (in) | 0.32 |
| F Flange Head Thickness (mm) | 8.1 |
| M Flange Diameter (in) | 2 |
| M Flange Diameter (mm) | 50.8 |
| Part Number 1 | 20G-20FL30S |
| Part Number 2 | G25304-2020 |
| Hose Id (in) | 1 1/4 |
| Hose Id (mm) | 31.8 |
| Brand | Gates |
| Manufacturer | Gates |
Special Order: Typically ships in 5 to 10 business days
$110.46
- Buy 5 for $96.84 each and save 12%
- Buy 10 for $92.99 each and save 16%
- Buy 20 for $92.44 each and save 16%
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 20GMV Hydraulic Hose Assembly | 1 1/4 | 1.76 | 250 | 1000 | 4 |
| Gates 20G1H Hydraulic Hose Assembly | 1 1/4 | 1.71 | 925 | 3700 | 16 |
This Product Replaces the Following:
Product ID:710326845
Product Name:G25304-2020 20G-20FL30S
Product ID: 710004075 Product Name:G25304-2020 20G-20FL30
UPC: 72053980264
Product ID: 710004075 Product Name:
UPC: 72053980264
