Gates 20G-20FL45S - G25306-2020 Hydraulic Hose Fitting
| SKU | 7103-27555 |
|---|---|
| Weight | 1.760000 |

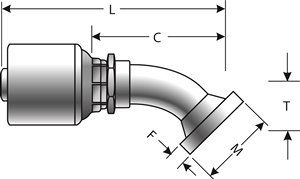

| L Length (in) | 6.18 |
| L Length (mm) | 157 |
| T Drop (in) | 1.26 |
| T Drop (mm) | 32 |
| C Cutoff (in) | 3.86 |
| C Cutoff (mm) | 98 |
| F Flange Head Thickness (in) | 0.32 |
| F Flange Head Thickness (mm) | 8.1 |
| M Flange Diameter (in) | 2 |
| M Flange Diameter (mm) | 50.8 |
| Part Number 1 | 20G-20FL45S |
| Part Number 2 | G25306-2020 |
| Hose Id (in) | 1 1/4 |
| Hose Id (mm) | 31.8 |
| Brand | Gates |
| Manufacturer | Gates |
Typically in Stock - Ships in 1 business day
$109.68
- Buy 5 for $91.76 each and save 16%
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 20GMV Hydraulic Hose Assembly | 1 1/4 | 1.76 | 250 | 1000 | 4 |
| Gates 20G1H Hydraulic Hose Assembly | 1 1/4 | 1.71 | 925 | 3700 | 16 |
This Product Replaces the Following:
Product ID:710327555
Product Name:G25306-2020 20G-20FL45S
Product ID: 710004205 Product Name:G25307-2020 20G-20FL45
UPC: 72053987300
Product ID: 710004205 Product Name:
UPC: 72053987300
