Gates 20GS-16FLH - G20350-2016 Hydraulic Hose Fitting
| SKU | 7347-48635 |
|---|---|
| Weight | 1.390000 |

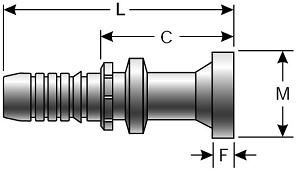

| L Length (in) | 6.42 |
| L Length (mm) | 163.1 |
| C Cutoff (in) | 3.62 |
| C Cutoff (mm) | 92 |
| F Flange Head Thickness (in) | 0.38 |
| F Flange Head Thickness (mm) | 9.7 |
| M Flange Diameter (in) | 1.88 |
| M Flange Diameter (mm) | 47.8 |
| Up Sell | 7347-4863 |
| Part Number 1 | 20GS-16FLH |
| Part Number 2 | G20350-2016 |
| Hose Id (in) | 1 1/4 |
| Hose Id (mm) | 31.8 |
| Brand | Gates |
| Manufacturer | Gates |
Special Order: Typically ships in 5 to 10 business days
$90.20
- Buy 5 for $75.16 each and save 17%
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 20EFG5K Hydraulic Hose Assembly | 1 1/4 | 1.97 | 5000 | 20000 | 8.2 |
| Gates 20EFG4K Hydraulic Hose Assembly | 1 1/4 | 1.85 | 4000 | 16000 | 8.2 |
| Gates 20EFG3K Hydraulic Hose Assembly | 1 1/4 | 1.85 | 3000 | 12000 | 8.2 |
Same Coupling – Purchase in Different Increments:
| Fitting Name | Minimum Order Quantity | Order in Increments Of | Price (ea) |
|---|---|---|---|
| Gates 20GS-16FLHXBULK - G20350-2016X Hydraulic Hose Fitting | 50 | 50 |
$66.81
|
This Product Replaces the Following:
Product ID:734748635
Product Name:G20350-2016 20GS-16FLH
UPC: 72053470789
UPC: 72053470789
