Gates 20GS-16FLH90-100 - G20366-2016 Hydraulic Hose Fitting
| SKU | 7347-76185 |
|---|---|
| Weight | 1.830000 |

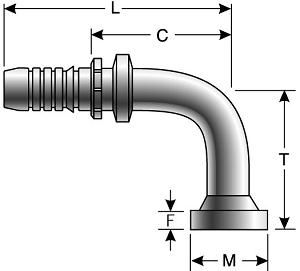

| L Length (in) | 6.3 |
| L Length (mm) | 160 |
| T Drop (in) | 3.94 |
| T Drop (mm) | 100.1 |
| C Cutoff (in) | 3.5 |
| C Cutoff (mm) | 88.9 |
| F Flange Head Thickness (in) | 0.38 |
| F Flange Head Thickness (mm) | 9.7 |
| M Flange Diameter (in) | 1.88 |
| M Flange Diameter (mm) | 47.8 |
| Part Number 1 | 20GS-16FLH90-100 |
| Part Number 2 | G20366-2016 |
| Hose Id (in) | 1 1/4 |
| Hose Id (mm) | 31.8 |
| Brand | Gates |
| Manufacturer | Gates |
Discontinued - No Longer Available
$0.00
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 20EFG5K Hydraulic Hose Assembly | 1 1/4 | 1.97 | 5000 | 20000 | 8.2 |
| Gates 20EFG4K Hydraulic Hose Assembly | 1 1/4 | 1.85 | 4000 | 16000 | 8.2 |
| Gates 20EFG3K Hydraulic Hose Assembly | 1 1/4 | 1.85 | 3000 | 12000 | 8.2 |
This Product Replaces the Following:
Product ID:734776185
Product Name:G20366-2016 20GS-16FLH90-100
UPC: 72053474602
UPC: 72053474602
