Gates 20GS-20FL90SXBULK - G20314-2020X Hydraulic Hose Fitting
SKU | 7347-4764 |
---|---|
Weight | 1.890000 |

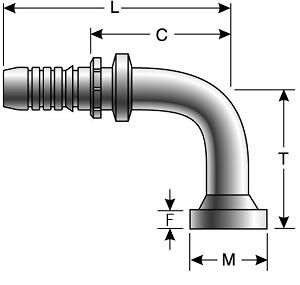

L Length (in) | 6.5 |
L Length (mm) | 165.1 |
T Drop (in) | 2.68 |
T Drop (mm) | 68.1 |
C Cutoff (in) | 3.7 |
C Cutoff (mm) | 94 |
F Flange Head Thickness (in) | 0.32 |
F Flange Head Thickness (mm) | 8.1 |
M Flange Diameter (in) | 2 |
M Flange Diameter (mm) | 50.8 |
Up Sell | 7347-47645 |
Part Number 1 | 20GS-20FL90SXBULK |
Part Number 2 | G20314-2020X |
Hose Id (in) | 1 1/4 |
Hose Id (mm) | 31.8 |
Brand | Gates |
Manufacturer | Gates |
Special Order: Typically ships in 5 to 10 business days
$54.51
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
---|---|---|---|---|---|
Gates 20EFG5K Hydraulic Hose Assembly | 1 1/4 | 1.97 | 5000 | 20000 | 8.2 |
Gates 20EFG4K Hydraulic Hose Assembly | 1 1/4 | 1.85 | 4000 | 16000 | 8.2 |
Gates 20EFG3K Hydraulic Hose Assembly | 1 1/4 | 1.85 | 3000 | 12000 | 8.2 |
Same Coupling – Purchase in Different Increments:
Fitting Name | Minimum Order Quantity | Order in Increments Of | Price (ea) |
---|---|---|---|
Gates 20GS-20FL90S - G20314-2020 Hydraulic Hose Fitting | 1 | 1 |
$73.59
|
This Product Replaces the Following:
Product ID:73474764
Product Name:G20314-2020X 20GS-20FL90SXBULK
UPC: 72053659665
