Gates 20GS-20FLH30M - G20354-2020 Hydraulic Hose Fitting

SKU 7347-50645
Weight 2.090000

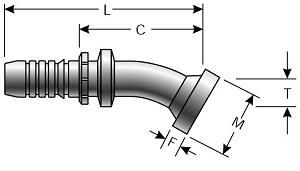

L Length (in) 7.24
L Length (mm) 183.9
T Drop (in) 0.87
T Drop (mm) 22.1
C Cutoff (in) 4.44
C Cutoff (mm) 112.8
F Flange Head Thickness (in) 0.41
F Flange Head Thickness (mm) 10.4
M Flange Diameter (in) 2.13
M Flange Diameter (mm) 54.1
Part Number 1 20GS-20FLH30M
Part Number 2 G20354-2020
Hose Id (in) 1 1/4
Hose Id (mm) 31.8
Brand Gates
Manufacturer Gates

Special Order: Typically ships in 5 to 10 business days

$111.40
  • Buy 5 for $97.59 each and save 12%
  • Buy 10 for $93.76 each and save 16%
  • Buy 20 for $93.27 each and save 16%

Minimum Order Quantity: 1

Order in Increments of: 1

Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
Hose Type Hose I.D. (in) Hose O.D. (in) Max Working Pressure (psi) Min Burst Pressure (psi) Min Bend Radius (in)
Gates 20EFG5K Hydraulic Hose Assembly 1 1/4 1.97 5000 20000 8.2
Gates 20EFG4K Hydraulic Hose Assembly 1 1/4 1.85 4000 16000 8.2
Gates 20EFG3K Hydraulic Hose Assembly 1 1/4 1.85 3000 12000 8.2
This Product Replaces the Following:
Product ID:734750645 Product Name:G20354-2020 20GS-20FLH30M
UPC: 72053474558
