Gates 20GS-20FLH90-076 - G20364-2020 Hydraulic Hose Fitting
| SKU | 7347-73635 |
|---|---|
| Weight | 2.420000 |

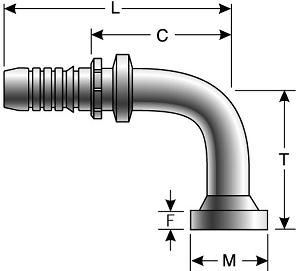

| L Length (in) | 6.5 |
| L Length (mm) | 165.1 |
| T Drop (in) | 2.99 |
| T Drop (mm) | 76 |
| C Cutoff (in) | 3.7 |
| C Cutoff (mm) | 94 |
| F Flange Head Thickness (in) | 0.41 |
| F Flange Head Thickness (mm) | 10.4 |
| M Flange Diameter (in) | 2.13 |
| M Flange Diameter (mm) | 54.1 |
| Part Number 1 | 20GS-20FLH90-076 |
| Part Number 2 | G20364-2020 |
| Hose Id (in) | 1 1/4 |
| Hose Id (mm) | 31.8 |
| Brand | Gates |
| Manufacturer | Gates |
Special Order: Typically ships in 5 to 10 business days
$114.47
- Buy 5 for $100.03 each and save 13%
- Buy 10 for $96.28 each and save 16%
- Buy 20 for $88.71 each and save 23%
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 20EFG5K Hydraulic Hose Assembly | 1 1/4 | 1.97 | 5000 | 20000 | 8.2 |
| Gates 20EFG4K Hydraulic Hose Assembly | 1 1/4 | 1.85 | 4000 | 16000 | 8.2 |
| Gates 20EFG3K Hydraulic Hose Assembly | 1 1/4 | 1.85 | 3000 | 12000 | 8.2 |
This Product Replaces the Following:
Product ID:734773635
Product Name:G20364-2020 20GS-20FLH90-076
UPC: 72053474626
UPC: 72053474626
