Gates 20GS-24FL67S - G20311-2024 Hydraulic Hose Fitting
| SKU | 7347-76605 |
|---|---|
| Weight | 1.900000 |

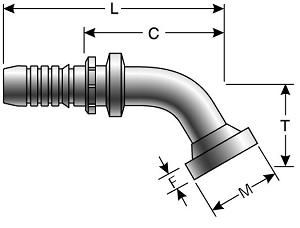

| L Length (in) | 6.46 |
| L Length (mm) | 164.1 |
| T Drop (in) | 2.01 |
| T Drop (mm) | 51.1 |
| C Cutoff (in) | 3.66 |
| C Cutoff (mm) | 93 |
| F Flange Head Thickness (in) | 0.32 |
| F Flange Head Thickness (mm) | 8.1 |
| M Flange Diameter (in) | 2.38 |
| M Flange Diameter (mm) | 60.5 |
| Part Number 1 | 20GS-24FL67S |
| Part Number 2 | G20311-2024 |
| Hose Id (in) | 1 1/4 |
| Hose Id (mm) | 31.8 |
| Brand | Gates |
| Manufacturer | Gates |
Special Order: Typically ships in 5 to 10 business days
$184.47
- Buy 2 for $159.71 each and save 13%
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 20EFG5K Hydraulic Hose Assembly | 1 1/4 | 1.97 | 5000 | 20000 | 8.2 |
| Gates 20EFG4K Hydraulic Hose Assembly | 1 1/4 | 1.85 | 4000 | 16000 | 8.2 |
| Gates 20EFG3K Hydraulic Hose Assembly | 1 1/4 | 1.85 | 3000 | 12000 | 8.2 |
This Product Replaces the Following:
Product ID:734776605
Product Name:G20311-2024 20GS-24FL67S
UPC: 72053676150
