Gates 4G-5MS - G25195-0405 Hydraulic Hose Fitting
| SKU | 7100-11825 |
|---|---|
| Weight | 0.100000 |

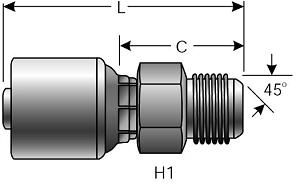

| L Length (in) | 2.16 |
| L Length (mm) | 54.8 |
| C Cutoff (in) | 1.13 |
| C Cutoff (mm) | 28.8 |
| Female Thread Id (mm) | 11.5 |
| Male Thread Od (mm) | 12.7 |
| Part Number 1 | 4G-5MS |
| Part Number 2 | G25195-0405 |
| Hose Id (in) | 1/4 |
| Hose Id (mm) | 6.4 |
| Brand | Gates |
| Manufacturer | Gates |
Special Order: Typically ships in 5 to 10 business days
$13.58
- Buy 25 for $12.46 each and save 8%
- Buy 50 for $11.70 each and save 14%
- Buy 100 for $11.32 each and save 17%
Thread Identification:
| Thread Size | 1/2-20 |
| Female Thread I.D. (in) | 29/64 (0.453) |
| Female Thread I.D. (mm) | 11.5 |
| Male Thread O.D. (in) | 1/2 (0.500) |
| Male Thread O.D. (mm) | 12.7 |
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 4M2T Hydraulic Hose Assembly | 1/4 | 0.56 | 6000 | 24000 | 1.5 |
| Gates 4M3K Hydraulic Hose Assembly | 1/4 | 0.48 | 3250 | 13000 | 1.5 |
| Gates 4G2 Hydraulic Hose Assembly | 1/4 | 0.59 | 5800 | 23200 | 4 |
This Product Replaces the Following:
Product ID:710011825
Product Name:G25195-0405 4G-5MS
UPC: 72053777079
