Gates 6G-14FDHORX45 - G25725-0614 Hydraulic Hose Fitting
| SKU | 7100-96165 |
|---|---|
| Weight | 0.299200 |

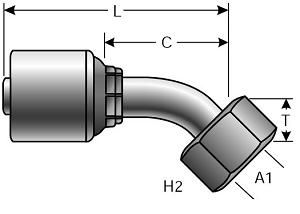

| L Length (in) | 2.79 |
| L Length (mm) | 70.9 |
| T Drop (in) | 0.83 |
| T Drop (mm) | 21 |
| H2 Nut Hex Mm | 27 |
| C Cutoff (in) | 1.69 |
| C Cutoff (mm) | 43 |
| Female Thread Id (mm) | 20.5 |
| Male Thread Od (mm) | 22 |
| Part Number 1 | 6G-14FDHORX45 |
| Part Number 2 | G25725-0614 |
| Hose Id (in) | 3/8 |
| Hose Id (mm) | 9.5 |
| Brand | Gates |
| Manufacturer | Gates |
Special Order: Typically ships in 5 to 10 business days
$58.72
- Buy 20 for $56.80 each and save 3%
Thread Identification:
| Thread Size | M22X1.5 |
| Female Thread I.D. (in) | 0.807 |
| Female Thread I.D. (mm) | 20.5 |
| Male Thread O.D. (in) | 0.866 |
| Male Thread O.D. (mm) | 22 |
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 6M2T Hydraulic Hose Assembly | 3/8 | 0.7 | 5000 | 20000 | 2 |
| Gates 6M3K Hydraulic Hose Assembly | 3/8 | 0.63 | 3250 | 13000 | 2 |
| Gates 6G2 Hydraulic Hose Assembly | 3/8 | 0.74 | 4800 | 19200 | 5 |
This Product Replaces the Following:
Product ID:710096165
Product Name:G25725-0614 6G-14FDHORX45
UPC: 770075613992
UPC: 770075613992
