Gates 6G-6MBX45BL - G25122-0606 Hydraulic Hose Fitting
| SKU | 7100-12475 |
|---|---|
| Weight | 0.330000 |

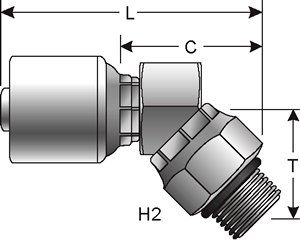

| L Length (in) | 3.11 |
| L Length (mm) | 79 |
| T Drop (in) | 1.09 |
| T Drop (mm) | 27.8 |
| C Cutoff (in) | 2.01 |
| C Cutoff (mm) | 51 |
| Female Thread Id (mm) | 12.7 |
| Male Thread Od (mm) | 14.3 |
| Part Number 1 | 6G-6MBX45BL |
| Part Number 2 | G25122-0606 |
| Hose Id (in) | 3/8 |
| Hose Id (mm) | 9.5 |
| Brand | Gates |
| Manufacturer | Gates |
Special Order: Typically ships in 5 to 10 business days
$47.83
- Buy 20 for $45.89 each and save 4%
- Buy 40 for $45.58 each and save 5%
Thread Identification:
| Thread Size | 9/16-18 |
| Female Thread I.D. (in) | 1/2 (0.500) |
| Female Thread I.D. (mm) | 12.7 |
| Male Thread O.D. (in) | 9/16 (0.562) |
| Male Thread O.D. (mm) | 14.3 |
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 6M2T Hydraulic Hose Assembly | 3/8 | 0.7 | 5000 | 20000 | 2 |
| Gates 6M3K Hydraulic Hose Assembly | 3/8 | 0.63 | 3250 | 13000 | 2 |
| Gates 6G2 Hydraulic Hose Assembly | 3/8 | 0.74 | 4800 | 19200 | 5 |
This Product Replaces the Following:
Product ID:710012475
Product Name:G25122-0606 6G-6MBX45BL
UPC: 72053571899
