Gates 8G-14FDHORX45 - G25725-0814 Hydraulic Hose Fitting
| SKU | 7100-96465 |
|---|---|
| Weight | 0.300000 |

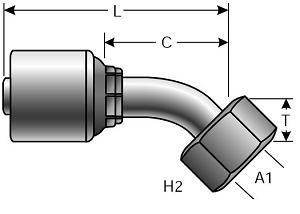

| L Length (in) | 3.59 |
| L Length (mm) | 91.3 |
| T Drop (in) | 1.07 |
| T Drop (mm) | 27.1 |
| H2 Nut Hex Mm | 27 |
| C Cutoff (in) | 2.12 |
| C Cutoff (mm) | 53.9 |
| Female Thread Id (mm) | 20.5 |
| Male Thread Od (mm) | 22 |
| Part Number 1 | 8G-14FDHORX45 |
| Part Number 2 | G25725-0814 |
| Hose Id (in) | 1/2 |
| Hose Id (mm) | 12.7 |
| Brand | Gates |
| Manufacturer | Gates |
Special Order: Typically ships in 5 to 10 business days
$63.11
- Buy 20 for $61.26 each and save 3%
Thread Identification:
| Thread Size | M22X1.5 |
| Female Thread I.D. (in) | 0.807 |
| Female Thread I.D. (mm) | 20.5 |
| Male Thread O.D. (in) | 0.866 |
| Male Thread O.D. (mm) | 22 |
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 8M2T Hydraulic Hose Assembly | 1/2 | 0.82 | 4300 | 17200 | 2.8 |
| Gates 8M3K Hydraulic Hose Assembly | 1/2 | 0.8 | 3250 | 13000 | 2.8 |
| Gates 8G2 Hydraulic Hose Assembly | 1/2 | 0.86 | 4000 | 16000 | 7 |
This Product Replaces the Following:
Product ID:710096465
Product Name:G25725-0814 8G-14FDHORX45
Product ID: 710094855 Product Name:8G-14FDHORX45
UPC: 72053844764
Product ID: 710094855 Product Name:
UPC: 72053844764
