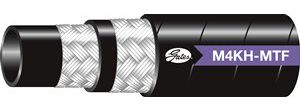

Gates 8M4KH-MTFXREEL - 70958 Hydraulic Hose

SKU 4657-2160
Weight 0.370000
Hose Id (in) 1/2
Max Working Pressure 4000
Min Burst Pressure (psi) 16000
Minimum Bend Radius (in) 3.5
Hose Od (in) 0.82
Brand Gates

Special Order: Typically ships in 5 to 10 business days

$9.12

Sold by the:    Reel

Priced per:    ft

Purchased in Increments of:    220 ft

Packaging Code: F

Same Hose – Purchase in Different Increments:
Title Sold By The Priced Per Purchase in Increments of
Gates 8M4KH-MTFX50FT - 85450 Hydraulic Hose 50 ft Box 50 ft Box
Gates 8M4KH-MTF Product Features:
Use: High Pressure
Recommended For: High-pressure hydraulic applications at elevated temperatures. Exceeds ISO 18752 Grade C, SAE 100R19 and ISO 11237 R19. Allows for tighter minimum bend radius, increased working pressure and improved impulse cycles than industry standards. Provides greater performance, flexibility, easier routing and plumbing of mobile and stationary hydraulic platforms.
Cover: Black, oil, abrasion and weather resistant MegaTuff® cover with color coded layline. Also available in Standard cover.
Reinforcement: Two braids of high-tensile steel wire.
Tube: Black, oil resistant, synthetic rubber (Nitrile - Type C). See Hose Stock Characteristics.
Temperature Range: -40°F to +250°F (-40°C to +121°C). For water emulsions see Temperature Limits Table.
Meets These Agency Specifications: DIN - Deutsch Industry Norm, InternationalMSHA 2G - Mine Safety & Health Administration, USAFRAS - Fire Retardant Anti Static, AustraliaUSCG - United States Coast GuardSAE - Society of Automotive EngineersISO - International Standards Organization
Standard Industry Specifications: SAE 100R19ISO 11237 R19
This Product Replaces the Following:
Product ID:46572160 Product Name:70958 8M4KH-MTFXREEL
