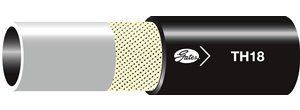

Gates 8TH18XCTN - 71004 Hydraulic Hose

SKU 4467-0009
Weight 0.222000
Hose Id (in) 1/2
Max Working Pressure 3000
Min Burst Pressure (psi) 12000
Minimum Bend Radius (in) 2.8
Hose Od (in) 0.89
Brand Gates

Special Order: Typically ships in 5 to 10 business days

$6.93

Sold by the:    Carton

Priced per:    ft

Purchased in Increments of:    250 ft

Packaging Code: N

Recommended Couplings:
Gates 8TH18 Product Features:
Use: Thermoplastic
Recommended For: TH18 hose meets or exceeds performance requirements of SAE 100R18 with a significantly tighter bend radius. Suitable for petroleum or synthetic-based hydraulic fluids in hydraulic systems. TH18 is ideal for industrial and agricultural applications exposed to low temperatures or cyclic and quick temperature changes. Remains highly flexible in cold weather conditions and is resistant to hydraulic fluids, high temperatures, aging and weathering.
Cover: Black Urethane perforated.
Reinforcement: Synthetic fiber.
Tube: Polyester elastomer.
Temperature Range: -67°F to +212°F (-55°C to +100°C) continuous service for petroleum and synthetic oils. Maximum of +158°F (+70°C) for water-based fluids.
Meets These Agency Specifications: MSHA 2G - Mine Safety & Health Administration, USASAE - Society of Automotive EngineersEN - European Norm
Standard Industry Specifications: SAE 100R18EN 3949ISO 3949
This Product Replaces the Following:
Product ID:44670009 Product Name:71004 8TH18XCTN
