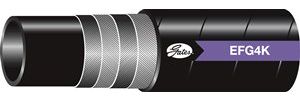

Gates 10EFG4KXCTN - 70813 Hydraulic Hose
SKU | 4651-1367 |
---|---|
Weight | 0.700000 |
Hose Id (in) | 5/8 |
Max Working Pressure | 4000 |
Min Burst Pressure (psi) | 16000 |
Minimum Bend Radius (in) | 4 |
Hose Od (in) | 1.09 |
Brand | Gates |
Special Order: Typically ships in 5 to 10 business days
$12.15
Same Hose – Purchase in Different Increments:
Title | Sold By The | Priced Per | Purchase in Increments of |
---|---|---|---|
Gates 10EFG4KX25FT - 85479 Hydraulic Hose | 25 ft Box | 25 ft Box | |
Gates 10EFG4KXLL - Hydraulic Hose | Carton | ft | 200 ft |
Recommended Couplings:
Gates 10EFG4K Product Features:
Use: | Extremely High Pressure |
Recommended For: | Extremely high-pressure, high-impulse applications. Exceeds all requirements of ISO 18752 Grade D, SAE 100R12, EN 856 R12 and ISO 3862 Type R12. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths. |
Cover: | Black, oil resistant, synthetic rubber (Polychloroprene - Type A), with color coded layline. Also available with unique abrasion resistant MegaTuff® cover. See Hose Stock Characteristics. |
Reinforcement: | Four alternating layers of spiraled, high-tensile steel wire. |
Tube: | Black, oil resistant, synthetic rubber (Nitrile - Type C). See Hose Stock Characteristics. |
Temperature Range: | -40°F to +250°F (-40°C to +121°C). For water emulsions see Temperature Limits Table. |
Meets These Agency Specifications: | ABS - American Bureau of ShippingDNV - Det Norske Veritas (North Sea Floating Vessels), InternationalDIN - Deutsch Industry Norm, InternationalGL - Germanischer Lloyd's, InternationalMSHA 2G - Mine Safety & Health Administration, USAAS - Australian StandardBV - Bureau Veritas (Marine Division), InternationalFRAS - Fire Retardant Anti Static, AustraliaLR - Lloyd's Register, InternationalUSCG - United States Coast GuardSAE - Society of Automotive EngineersISO - International Standards OrganizationEN - European Norm |
Standard Industry Specifications: | SAE 100R12ISO 3862 R12EN 856 R12 |
This Product Replaces the Following:
Product ID:46511367
Product Name:70813 10EFG4KXCTN
Product ID: 46511352 Product Name:70578 10G4KXCTN
Product ID: 46511352 Product Name:
