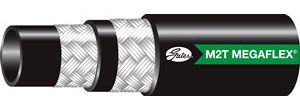

Gates 10M2TX50FT - 85603 Hydraulic Hose

SKU	4657-1564
Weight	22.060000
Hose Id (in)	5/8
Max Working Pressure	3800
Min Burst Pressure (psi)	15200
Minimum Bend Radius (in)	3
Hose Od (in)	0.95
Up Sell 3	10M2TXREEL
Cross Sell	Gates 10M2T Hydraulic Hose Assembly
Brand	Gates

Skip to the beginning of the images gallery

Special Order: Typically ships in 5 to 10 business days

$444.15

Buy 2 for $424.14 each and save 5%
Buy 4 for $418.83 each and save 6%

Sold by the: 50 ft Box

Priced per: 50 ft Box

Packaging Code: T

Same Hose – Purchase in Different Increments:

Title	Sold By The	Priced Per	Purchase in Increments of
Gates 10M2TXBALE - Hydraulic Hose	Bale	ft	1750 ft
Gates 10M2TXFT - 70393 Hydraulic Hose	ft	ft
Gates 10M2TXREEL - 70393 Hydraulic Hose	Reel	ft	220 ft

Recommended Couplings:

MegaCrimp® Couplings, GlobalSpiral™ Couplings or Stainless Steel Couplings "B" Series

Gates 10M2T Product Features:

High Pressure

Recommended For:

High-pressure hydraulic oil lines. Exceeds SAE 100R16, SAE 100R2, ISO 11237 2SC R16 and ISO 1436 2SN R2 requirements and performance requirements of EN 857 2SC and EN 853 2SN. M2T hose has smaller exterior dimensions and significantly tighter bend radius.

Cover:

Black, oil, abrasion and weather resistant, synthetic rubber (Modified Nitrile - Type C2), with color coded layline. Also available with unique abrasion resistant MegaTuff® or XtraTuff™ cover. See Hose Stock Characteristics.

Reinforcement:

Two braids of high-tensile steel wire.

Tube:

Black, oil resistant, synthetic rubber (Nitrile - Type C). See Hose Stock Characteristics.

Temperature Range:

-40°F to +212°F (-40°C to +100°C). For water emulsions see Temperature Limits Table.

Meets These Agency Specifications:

ABS - American Bureau of ShippingDNV - Det Norske Veritas (North Sea Floating Vessels), InternationalDIN - Deutsch Industry Norm, InternationalMSHA 2G - Mine Safety & Health Administration, USAFRAS - Fire Retardant Anti Static, AustraliaUSCG - United States Coast GuardSAE - Society of Automotive EngineersISO - International Standards OrganizationEN - European Norm

Standard Industry Specifications:

SAE 100R16EN 857 2SCISO 11237 2SC R16

This Product Replaces the Following:

Product ID:46571564 Product Name:85603 10M2TX50FT

Package Code	Standard Bulk Hose Packaging Description
A	Qty ± 20%, 50% In Lengths 40Ft. & Longer, Minimum Length of 10Ft., 2 Lengths Under 20 Ft. Allowed, Maximum of 3 Lengths.
B	Qty ± 10 Ft., Minimum Length of 5 Ft., Maximum of 2 Lengths.
C	Qty ± 10%, 50% In Lengths 40 Ft. & Longer, 50% In Lengths of 10 Ft. to 39 Ft.
D	Qty ± 10%, 65% In Lengths Longer Than 45 Ft., Minimum Length of 10 Ft., 2 Lengths Under 20 Ft. Allowed, Maximum of 6 Lengths.
E	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 4 Lengths.
F	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 3 Lengths.
G	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 4 Lengths.
H	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 3 Lengths.
I	Qty ± 20 Ft., Minimum Length of 20 Ft., 1 Length 40 Ft. or Longer, Maximum of 3 Lengths.
J	Size 3/16" through 3/4" 450 - 650 ft per reel/min of 1 lgth - max of 4 lgths per reel/one lgth less than 100 ft/min lgth 15 ft allowed
	Sizes above 3/4" 400 - 350 ft per reel/min of 1 lgth - max of 3 lgths per reel/one lgth less than 100 ft/min lgth of 15 ft allowed
K	Qty ± 20%, 65% In Lengths Longer Than 45 Ft., 25% In Lengths 25 Ft. to 45 Ft., 10% In Lengths 5 Ft. to 25 Ft., Maximum of 4 Lengths.
L	Qty ± 10%, Minimum Length of 25 Ft., Maximum of 3 Lengths.
M	Qty: ± 20%, Maximum of 2 Lengths, Minimum Length of 50 Feet.
N	Qty ± 0 Ft., Maximum of 2 Lengths, Minimum Length of 10 Feet.
O	One Continuous Length Between 121'-200'.
P	Hose Size> Max 2 Cont Lgths Per Reel
	3/16" 200 ft. x 2 =400 ft
	1/4" 175 ft. x 2 =350 ft
	5/16" 150 ft. x 2 =300 ft
	13/32" 125 ft. x 2 =250 ft
	1/2" 100 ft. x 2 = 200 ft
	5/8" 75 ft. x 2= 150 ft
	7/8" 50 ft. x 2= 100 ft
Q	*Qty: Maximum 1 Continuous Length +/-10%.
R	Hose lengths shall be as long as possible, minimum length is 25 ft. Hose will be stacked on pallets in bales, stretch wrapped and banded.
S	Minimum length of 50 ft., any number of pieces. All lengths to be in 50 ft. increments (i.e. 50,100, 150 etc.)
T	Packaged one continuous length per each or per container.
U	± 10% Minimum Length 15 ft., Maximum of 3 Lengths.
V	Qty +/ 0, 65% in lengths longer than 45 ft., minimum length of 10 ft., 2 lengths under 20 ft. allowed, maximum of 6 lengths.
