Gates 12G-27FFGX - G25680-1227 Hydraulic Hose Fitting
| SKU | 7100-25045 |
|---|---|
| Weight | 0.668800 |

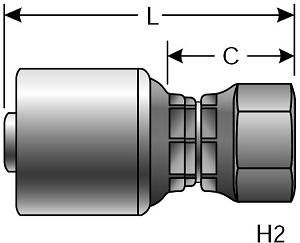

| L Length (in) | 2.91 |
| L Length (mm) | 74 |
| H2 Nut Hex Mm | 46 |
| C Cutoff (in) | 0.91 |
| C Cutoff (mm) | 23 |
| Female Thread Id (mm) | 34.5 |
| Male Thread Od (mm) | 36 |
| Part Number 1 | 12G-27FFGX |
| Part Number 2 | G25680-1227 |
| Hose Id (in) | 3/4 |
| Hose Id (mm) | 19.1 |
| Brand | Gates |
| Manufacturer | Gates |
Discontinued - No Longer Available
$0.00
Thread Identification:
| Thread Size | M36X1.5 |
| Female Thread I.D. (in) | 1.358 |
| Female Thread I.D. (mm) | 34.5 |
| Male Thread O.D. (in) | 1.417 |
| Male Thread O.D. (mm) | 36 |
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 12M2T Hydraulic Hose Assembly | 3/4 | 1.11 | 3500 | 14000 | 3.8 |
| Gates 12M4K Hydraulic Hose Assembly | 3/4 | 1.17 | 4000 | 16000 | 3.8 |
This Product Replaces the Following:
Product ID:710025045
Product Name:G25680-1227 12G-27FFGX
UPC: 770075613237
