Gates 12GS-12FJX - G20170-1212 Hydraulic Hose Fitting
| SKU | 7347-24445 |
|---|---|
| Weight | 0.460000 |

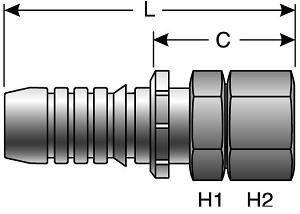

| L Length (in) | 3.87 |
| L Length (mm) | 98.3 |
| C Cutoff (in) | 1.86 |
| C Cutoff (mm) | 47.2 |
| Female Thread Id (mm) | 24.6 |
| Male Thread Od (mm) | 27 |
| Up Sell | 7347-2444 |
| Part Number 1 | 12GS-12FJX |
| Part Number 2 | G20170-1212 |
| Hose Id (in) | 3/4 |
| Hose Id (mm) | 19.1 |
| Brand | Gates |
| Manufacturer | Gates |
Typically in Stock - Ships in 1 business day
$14.36
- Buy 25 for $13.12 each and save 9%
- Buy 50 for $12.34 each and save 14%
- Buy 100 for $11.97 each and save 17%
Thread Identification:
| Thread Size | 1 1/16-12 |
| Female Thread I.D. (in) | 31/32 (0.969) |
| Female Thread I.D. (mm) | 24.6 |
| Male Thread O.D. (in) | 1-1/16 (1.062) |
| Male Thread O.D. (mm) | 27 |
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 12EFG6K Hydraulic Hose Assembly | 3/4 | 1.24 | 6000 | 24000 | 4.7 |
| Gates 12EFG5K Hydraulic Hose Assembly | 3/4 | 1.24 | 5000 | 20000 | 4.7 |
| Gates 12EFG4K Hydraulic Hose Assembly | 3/4 | 1.21 | 4000 | 16000 | 4.7 |
This Product Replaces the Following:
Product ID:734724445
Product Name:G20170-1212 12GS-12FJX
UPC: 72053399226
UPC: 72053399226
