Gates 12GS-16FL90M XBULK - G20315-1216X Hydraulic Hose Fitting
| SKU | 7347-7392 |
|---|---|
| Weight | 0.840000 |

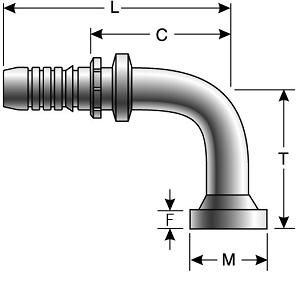

| L Length (in) | 4.41 |
| L Length (mm) | 112 |
| T Drop (in) | 2.76 |
| T Drop (mm) | 70.1 |
| C Cutoff (in) | 2.4 |
| C Cutoff (mm) | 61 |
| F Flange Head Thickness (in) | 0.32 |
| F Flange Head Thickness (mm) | 8.1 |
| M Flange Diameter (in) | 1.75 |
| M Flange Diameter (mm) | 44.5 |
| Up Sell | 7347-73925 |
| Part Number 1 | 12GS-16FL90M XBULK |
| Part Number 2 | G20315-1216X |
| Hose Id (in) | 3/4 |
| Hose Id (mm) | 19.1 |
| Brand | Gates |
| Manufacturer | Gates |
Special Order: Typically ships in 5 to 10 business days
$42.89
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 12EFG6K Hydraulic Hose Assembly | 3/4 | 1.24 | 6000 | 24000 | 4.7 |
| Gates 12EFG5K Hydraulic Hose Assembly | 3/4 | 1.24 | 5000 | 20000 | 4.7 |
| Gates 12EFG4K Hydraulic Hose Assembly | 3/4 | 1.21 | 4000 | 16000 | 4.7 |
Same Coupling – Purchase in Different Increments:
| Fitting Name | Minimum Order Quantity | Order in Increments Of | Price (ea) |
|---|---|---|---|
| Gates 12GS-16FL90M - G20315-1216 Hydraulic Hose Fitting | 1 | 1 |
$57.90
|
This Product Replaces the Following:
Product ID:73477392
Product Name:G20315-1216X 12GS-16FL90M XBULK
UPC: 72053659672
UPC: 72053659672
