Gates 12GS-28MKB - G20735-1228 Hydraulic Hose Fitting
| SKU | 7347-73675 |
|---|---|
| Weight | 0.660000 |

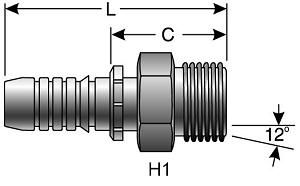

| H1 Stem Hex (mm) | 41 |
| L Length (in) | 3.62 |
| L Length (mm) | 92 |
| C Cutoff (in) | 1.61 |
| C Cutoff (mm) | 40.9 |
| Part Number 1 | 12GS-28MKB |
| Part Number 2 | G20735-1228 |
| Hose Id (in) | 3/4 |
| Hose Id (mm) | 19.1 |
| Brand | Gates |
| Manufacturer | Gates |
Special Order: Typically ships in 5 to 10 business days
$64.28
- Buy 5 for $59.21 each and save 8%
- Buy 10 for $55.50 each and save 14%
- Buy 20 for $53.56 each and save 17%
Thread Identification:
| Thread Size | M36X1.5 |
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 12EFG6K Hydraulic Hose Assembly | 3/4 | 1.24 | 6000 | 24000 | 4.7 |
| Gates 12EFG5K Hydraulic Hose Assembly | 3/4 | 1.24 | 5000 | 20000 | 4.7 |
| Gates 12EFG4K Hydraulic Hose Assembly | 3/4 | 1.21 | 4000 | 16000 | 4.7 |
This Product Replaces the Following:
Product ID:734773675
Product Name:G20735-1228 12GS-28MKB
UPC: 72053408423
