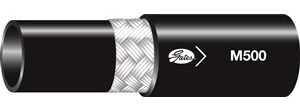

Gates 12M500X50FT - 85446 Hydraulic Hose

SKU	4657-4091
Weight	20.600000
Hose Id (in)	3/4
Max Working Pressure	500
Min Burst Pressure (psi)	2000
Minimum Bend Radius (in)	4.7
Hose Od (in)	1.09
Brand	Gates

Skip to the beginning of the images gallery

Special Order: Typically ships in 5 to 10 business days

$334.73

Buy 2 for $315.23 each and save 6%
Buy 4 for $305.96 each and save 9%

Sold by the: 50 ft Box

Priced per: 50 ft Box

Packaging Code: T

Same Hose – Purchase in Different Increments:

Title	Sold By The	Priced Per	Purchase in Increments of
Gates 12M500XREEL - 70770 Hydraulic Hose	Reel	ft	220 ft

Recommended Couplings:

MegaCrimp® Couplings, GlobalSpiral™ Couplings or GLP Couplings

Gates 12M500 Product Features:

Use:	Low Pressure
Recommended For:	Pilot lines, grease lines and pressure return lines, 500 psi or less pressure applications.
Cover:	Black, oil and abrasion resistant, synthetic rubber, flame resistance (Nitrile/PVC - Type C2). Also available with unique abrasion resistant XtraTuff™ cover. See Hose Stock Characteristics.
Reinforcement:	One braid of high-tensile steel wire.
Tube:	Black, oil resistant, synthetic rubber (Nitrile - Type C).
Temperature Range:	-40°F to +212°F (-40°C to +100°C).
Meets These Agency Specifications:
Standard Industry Specifications:

This Product Replaces the Following:

Product ID:46574091 Product Name:85446 12M500X50FT

Package Code	Standard Bulk Hose Packaging Description
A	Qty ± 20%, 50% In Lengths 40Ft. & Longer, Minimum Length of 10Ft., 2 Lengths Under 20 Ft. Allowed, Maximum of 3 Lengths.
B	Qty ± 10 Ft., Minimum Length of 5 Ft., Maximum of 2 Lengths.
C	Qty ± 10%, 50% In Lengths 40 Ft. & Longer, 50% In Lengths of 10 Ft. to 39 Ft.
D	Qty ± 10%, 65% In Lengths Longer Than 45 Ft., Minimum Length of 10 Ft., 2 Lengths Under 20 Ft. Allowed, Maximum of 6 Lengths.
E	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 4 Lengths.
F	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 3 Lengths.
G	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 4 Lengths.
H	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 3 Lengths.
I	Qty ± 20 Ft., Minimum Length of 20 Ft., 1 Length 40 Ft. or Longer, Maximum of 3 Lengths.
J	Size 3/16" through 3/4" 450 - 650 ft per reel/min of 1 lgth - max of 4 lgths per reel/one lgth less than 100 ft/min lgth 15 ft allowed
	Sizes above 3/4" 400 - 350 ft per reel/min of 1 lgth - max of 3 lgths per reel/one lgth less than 100 ft/min lgth of 15 ft allowed
K	Qty ± 20%, 65% In Lengths Longer Than 45 Ft., 25% In Lengths 25 Ft. to 45 Ft., 10% In Lengths 5 Ft. to 25 Ft., Maximum of 4 Lengths.
L	Qty ± 10%, Minimum Length of 25 Ft., Maximum of 3 Lengths.
M	Qty: ± 20%, Maximum of 2 Lengths, Minimum Length of 50 Feet.
N	Qty ± 0 Ft., Maximum of 2 Lengths, Minimum Length of 10 Feet.
O	One Continuous Length Between 121'-200'.
P	Hose Size> Max 2 Cont Lgths Per Reel
	3/16" 200 ft. x 2 =400 ft
	1/4" 175 ft. x 2 =350 ft
	5/16" 150 ft. x 2 =300 ft
	13/32" 125 ft. x 2 =250 ft
	1/2" 100 ft. x 2 = 200 ft
	5/8" 75 ft. x 2= 150 ft
	7/8" 50 ft. x 2= 100 ft
Q	*Qty: Maximum 1 Continuous Length +/-10%.
R	Hose lengths shall be as long as possible, minimum length is 25 ft. Hose will be stacked on pallets in bales, stretch wrapped and banded.
S	Minimum length of 50 ft., any number of pieces. All lengths to be in 50 ft. increments (i.e. 50,100, 150 etc.)
T	Packaged one continuous length per each or per container.
U	± 10% Minimum Length 15 ft., Maximum of 3 Lengths.
V	Qty +/ 0, 65% in lengths longer than 45 ft., minimum length of 10 ft., 2 lengths under 20 ft. allowed, maximum of 6 lengths.
