Gates 16GS-20FFORX - G20230-1620 Hydraulic Hose Fitting
| SKU | 7347-30565 |
|---|---|
| Weight | 1.150000 |

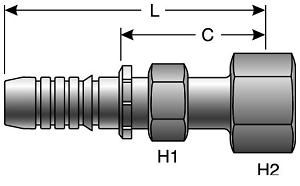

| H1 Stem Hex (mm) | 41 |
| L Length (in) | 4.36 |
| L Length (mm) | 110.7 |
| H2 Nut Hex Mm | 50 |
| C Cutoff (in) | 2.14 |
| C Cutoff (mm) | 54.4 |
| Female Thread Id (mm) | 40.5 |
| Male Thread Od (mm) | 42.9 |
| Up Sell | 7347-3056 |
| Part Number 1 | 16GS-20FFORX |
| Part Number 2 | G20230-1620 |
| Hose Id (in) | 1 |
| Hose Id (mm) | 25.4 |
| Brand | Gates |
| Manufacturer | Gates |
Typically in Stock - Ships in 1 business day
$61.35
- Buy 5 for $56.70 each and save 8%
- Buy 10 for $53.08 each and save 13%
- Buy 20 for $51.13 each and save 17%
Thread Identification:
| Thread Size | 1 11/16-12 |
| Female Thread I.D. (in) | 1-19/32 (1.594) |
| Female Thread I.D. (mm) | 40.5 |
| Male Thread O.D. (in) | 1-11/16 (1.688) |
| Male Thread O.D. (mm) | 42.9 |
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 16EFG6K Hydraulic Hose Assembly | 1 | 1.53 | 6000 | 24000 | 6 |
| Gates 16EFG5K Hydraulic Hose Assembly | 1 | 1.53 | 5000 | 20000 | 6 |
| Gates 16EFG4K Hydraulic Hose Assembly | 1 | 1.5 | 4000 | 16000 | 6 |
Same Coupling – Purchase in Different Increments:
| Fitting Name | Minimum Order Quantity | Order in Increments Of | Price (ea) |
|---|---|---|---|
| Gates 16GS-20FFORX XBULK - G20230-1620X Hydraulic Hose Fitting | 25 | 25 |
$45.45
|
This Product Replaces the Following:
Product ID:734730565
Product Name:G20230-1620 16GS-20FFORX
UPC: 72053435085
UPC: 72053435085
