Gates 16GS-20FLC22-017 - G20402-1620 Hydraulic Hose Fitting
| SKU | 7347-63565 |
|---|---|
| Weight | 1.300000 |

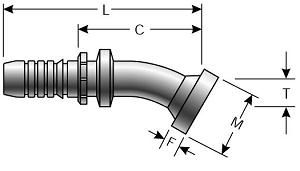

| L Length (in) | 6.02 |
| L Length (mm) | 152.9 |
| T Drop (in) | 0.67 |
| T Drop (mm) | 17 |
| C Cutoff (in) | 3.78 |
| C Cutoff (mm) | 96 |
| F Flange Head Thickness (in) | 0.56 |
| F Flange Head Thickness (mm) | 14.2 |
| M Flange Diameter (in) | 2.13 |
| M Flange Diameter (mm) | 54.1 |
| Part Number 1 | 16GS-20FLC22-017 |
| Part Number 2 | G20402-1620 |
| Hose Id (in) | 1 |
| Hose Id (mm) | 25.4 |
| Brand | Gates |
| Manufacturer | Gates |
Special Order: Typically ships in 5 to 10 business days
$112.03
- Buy 5 for $98.09 each and save 12%
- Buy 10 for $94.28 each and save 16%
- Buy 20 for $93.83 each and save 16%
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 16EFG6K Hydraulic Hose Assembly | 1 | 1.53 | 6000 | 24000 | 6 |
| Gates 16EFG5K Hydraulic Hose Assembly | 1 | 1.53 | 5000 | 20000 | 6 |
| Gates 16EFG4K Hydraulic Hose Assembly | 1 | 1.5 | 4000 | 16000 | 6 |
This Product Replaces the Following:
Product ID:734763565
Product Name:G20402-1620 16GS-20FLC22-017
UPC: 72053297119
UPC: 72053297119
