Gates 16GS-20FLC90-074 - G20415-1620 Hydraulic Hose Fitting
| SKU | 7347-68565 |
|---|---|
| Weight | 1.410000 |

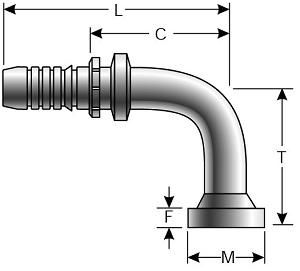

| L Length (in) | 5.16 |
| L Length (mm) | 131.1 |
| T Drop (in) | 2.91 |
| T Drop (mm) | 73.9 |
| C Cutoff (in) | 2.92 |
| C Cutoff (mm) | 74.2 |
| F Flange Head Thickness (in) | 0.56 |
| F Flange Head Thickness (mm) | 14.2 |
| M Flange Diameter (in) | 2.13 |
| M Flange Diameter (mm) | 54.1 |
| Up Sell | 7347-6856 |
| Part Number 1 | 16GS-20FLC90-074 |
| Part Number 2 | G20415-1620 |
| Hose Id (in) | 1 |
| Hose Id (mm) | 25.4 |
| Brand | Gates |
| Manufacturer | Gates |
Special Order: Typically ships in 5 to 10 business days
$102.83
- Buy 5 for $90.70 each and save 12%
- Buy 10 for $86.73 each and save 16%
- Buy 20 for $85.78 each and save 17%
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 16EFG6K Hydraulic Hose Assembly | 1 | 1.53 | 6000 | 24000 | 6 |
| Gates 16EFG5K Hydraulic Hose Assembly | 1 | 1.53 | 5000 | 20000 | 6 |
| Gates 16EFG4K Hydraulic Hose Assembly | 1 | 1.5 | 4000 | 16000 | 6 |
Same Coupling – Purchase in Different Increments:
| Fitting Name | Minimum Order Quantity | Order in Increments Of | Price (ea) |
|---|---|---|---|
| Gates 16GS-20FLC90-074XBULK - G20415-1620X Hydraulic Hose Fitting | 25 | 25 |
$76.24
|
This Product Replaces the Following:
Product ID:734768565
Product Name:G20415-1620 16GS-20FLC90-074
UPC: 72053300758
