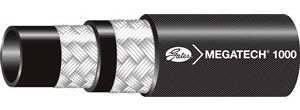

Gates 16MEGATECH1000X50FT - 85985 Hydraulic Hose

SKU 4657-4041
Weight 25.800000
Hose Id (in) 1
Max Working Pressure 1000
Min Burst Pressure (psi) 4000
Minimum Bend Radius (in) 6
Hose Od (in) 1.37
Vacuum In Hg 30
Brand Gates

Special Order: Typically ships in 5 to 10 business days

$957.33

Sold by the:    50 ft Box

Priced per:    50 ft Box

Packaging Code: T

Same Hose – Purchase in Different Increments:
Title Sold By The Priced Per Purchase in Increments of
Gates 16MEGATECH1000XREEL - 70889 Hydraulic Hose Reel ft 150 ft
Recommended Couplings:
Gates 16MEGATECH1000 Product Features:
Use: Fleet Application
Recommended For: Air brake, pressurized hot oil return lines and rotary oil/air compressor lines. Meets the requirements of DOT FMVSS 106-74, SAE J1402, for Air Brake Hose (-4, 6, 8, 10), and SAE J1405 performance specifications for high-temperature transmission and lubricating oil systems using petroleum base oils. Not recommended for gasoline or diesel fuel applications.
Cover: Oil and mildew resistant, textile braid, impregnated with synthetic rubber.
Reinforcement: One braid of high-tensile steel wire.
Tube: GTS (Gates Technical Spec.) black tube specifically compounded for temperature and chemical resistance (CPE - Type J). See Hose Stock Characteristics.
Temperature Range: Petroleum-base fluids: -40°F to +300°F (-40°C to +149°C). Phosphate esters fluids as recommended by the fluid manufacturer, but within a range of -40°F to +212°F (-40°C to +100°C). For water emulsions see Temperature Limits Table.
Meets These Agency Specifications: DOT - Department of Transportation, USASAE - Society of Automotive EngineersFMVSS - Federal Motor Vehicle Safety Standard, USA
Standard Industry Specifications: SAE J1405SAE J1402
This Product Replaces the Following:
Product ID:46574041 Product Name:85985 16MEGATECH1000X50FT
