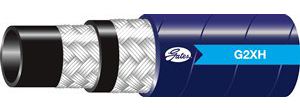

Gates 20G2XHXCTN - 70990 Hydraulic Hose

SKU 4657-4988
Weight 1.820000
Hose Id (in) 1 1/4
Max Working Pressure 2250
Min Burst Pressure (psi) 9000
Minimum Bend Radius (in) 16.5
Hose Od (in) 1.86
Brand Gates

Special Order: Typically ships in 5 to 10 business days

$39.86

Sold by the:    Carton

Priced per:    ft

Purchased in Increments of:    130 ft

Packaging Code: A

Gates 20G2XH Product Features:
Use: High Pressure
Recommended For: Extremely high-temperature high-pressure hydraulic applications where pressure or temperature requirements exceed SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN or where resistance to either petroleum-base or phosphate ester fluids is required. Meets SAE J1942 requirements.
Cover: Blue, oil and abrasion resistant, thin synthetic rubber CSM - Type M.
Reinforcement: Two braids of high-tensile steel wire.
Tube: Black, oil and chemical resistant, synthetic rubber (CPE - Type J).
Temperature Range: Petroleum-base fluids: -40°F to +300°F (-40°C to +149°C). Phosphate esters fluids as recommended by the fluid manufacturer, but within a range of -40°F to +212°F. For water emulsions: Max. +225°F Pressure lines, Max +180°F Return lines.
Meets These Agency Specifications: DIN - Deutsch Industry Norm, InternationalMSHA 2G - Mine Safety & Health Administration, USAFRAS - Fire Retardant Anti Static, AustraliaUSCG - United States Coast GuardSAE - Society of Automotive EngineersISO - International Standards OrganizationEN - European Norm
Standard Industry Specifications: EN 853 2SNSAE 100R2 Type SISO 1436 2SN R2
This Product Replaces the Following:
Product ID:46574988 Product Name:70990 20G2XHXCTN
Product ID: 46574005 Product Name: 70990 20G2XH XCTN
