Gates 20GS-20FL22M - G20302-2020 Hydraulic Hose Fitting
| SKU | 7347-42645 |
|---|---|
| Weight | 1.580000 |

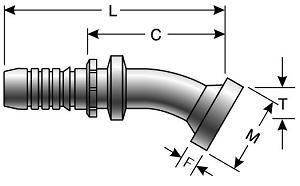

| L Length (in) | 7.01 |
| L Length (mm) | 178.1 |
| T Drop (in) | 0.59 |
| T Drop (mm) | 15 |
| C Cutoff (in) | 4.21 |
| C Cutoff (mm) | 106.9 |
| F Flange Head Thickness (in) | 0.32 |
| F Flange Head Thickness (mm) | 8.1 |
| M Flange Diameter (in) | 2 |
| M Flange Diameter (mm) | 50.8 |
| Part Number 1 | 20GS-20FL22M |
| Part Number 2 | G20302-2020 |
| Hose Id (in) | 1 1/4 |
| Hose Id (mm) | 31.8 |
| Brand | Gates |
| Manufacturer | Gates |
Typically in Stock - Ships in 1 business day
$91.03
- Buy 5 for $81.33 each and save 11%
- Buy 10 for $77.29 each and save 15%
- Buy 20 for $75.86 each and save 17%
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 20EFG5K Hydraulic Hose Assembly | 1 1/4 | 1.97 | 5000 | 20000 | 8.2 |
| Gates 20EFG4K Hydraulic Hose Assembly | 1 1/4 | 1.85 | 4000 | 16000 | 8.2 |
| Gates 20EFG3K Hydraulic Hose Assembly | 1 1/4 | 1.85 | 3000 | 12000 | 8.2 |
This Product Replaces the Following:
Product ID:734742645
Product Name:G20302-2020 20GS-20FL22M
UPC: 72053474800
