Gates 20GS-20FLC30-024 - G20404-2020 Hydraulic Hose Fitting
SKU | 7347-64645 |
---|---|
Weight | 2.090000 |

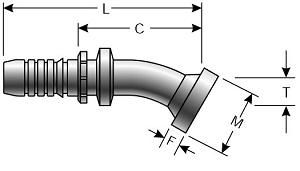

L Length (in) | 7.2 |
L Length (mm) | 182.9 |
T Drop (in) | 0.94 |
T Drop (mm) | 23.9 |
C Cutoff (in) | 4.41 |
C Cutoff (mm) | 112 |
F Flange Head Thickness (in) | 0.56 |
F Flange Head Thickness (mm) | 14.2 |
M Flange Diameter (in) | 2.13 |
M Flange Diameter (mm) | 54.1 |
Part Number 1 | 20GS-20FLC30-024 |
Part Number 2 | G20404-2020 |
Hose Id (in) | 1 1/4 |
Hose Id (mm) | 31.8 |
Brand | Gates |
Manufacturer | Gates |
Typically in Stock - Ships in 1 business day
$109.56
- Buy 5 for $96.12 each and save 12%
- Buy 10 for $92.26 each and save 16%
- Buy 20 for $91.66 each and save 16%
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
---|---|---|---|---|---|
Gates 20EFG5K Hydraulic Hose Assembly | 1 1/4 | 1.97 | 5000 | 20000 | 8.2 |
Gates 20EFG4K Hydraulic Hose Assembly | 1 1/4 | 1.85 | 4000 | 16000 | 8.2 |
Gates 20EFG3K Hydraulic Hose Assembly | 1 1/4 | 1.85 | 3000 | 12000 | 8.2 |
This Product Replaces the Following:
Product ID:734764645
Product Name:G20404-2020 20GS-20FLC30-024
UPC: 72053454680
