Gates 24HO-MTFXCTN - 70015 Hydraulic Hose

SKU	4657-4463
Weight	1.600000
Hose Id (in)	1 1/2
Max Working Pressure	2300
Min Burst Pressure (psi)	6900
Minimum Bend Radius (in)	20
Hose Od (in)	2.15
Freight Class	85
Brand	Gates

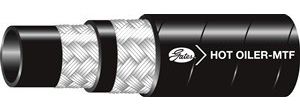

main product photo

Skip to the beginning of the images gallery

Discontinued - No Longer Available

$0.00

Sold by the: Carton

Purchased in Increments of: 120 ft

Packaging Code: A

Recommended Couplings:

GlobalSpiral™ Plus Couplings

Gates 24HO-MTF Product Features:

High Pressure

Recommended For:

Static pressure, hot oiler applications. Designed specifically to handle the transfer of hot oil at +275°F continuous, +300°F intermittent to clear the paraffin around the casing to help start the flow of oil to the surface.

Cover:

Black, oil, abrasion and weather resistant MegaTuff® cover.

Reinforcement:

Two braids of high-tensile steel wire.

Tube:

Black, oil resistant, synthetic rubber (Nitrile - Type C). See Hose Stock Characteristics.

Temperature Range:

-40°F to +300°F (-40°C to +149°C).

Meets These Agency Specifications:

Standard Industry Specifications:

This Product Replaces the Following:

Product ID:46574463 Product Name:70015 24HO-MTFXCTN

Search

My Cart

Package Code	Standard Bulk Hose Packaging Description
A	Qty ± 20%, 50% In Lengths 40Ft. & Longer, Minimum Length of 10Ft., 2 Lengths Under 20 Ft. Allowed, Maximum of 3 Lengths.
B	Qty ± 10 Ft., Minimum Length of 5 Ft., Maximum of 2 Lengths.
C	Qty ± 10%, 50% In Lengths 40 Ft. & Longer, 50% In Lengths of 10 Ft. to 39 Ft.
D	Qty ± 10%, 65% In Lengths Longer Than 45 Ft., Minimum Length of 10 Ft., 2 Lengths Under 20 Ft. Allowed, Maximum of 6 Lengths.
E	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 4 Lengths.
F	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 3 Lengths.
G	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 4 Lengths.
H	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 3 Lengths.
I	Qty ± 20 Ft., Minimum Length of 20 Ft., 1 Length 40 Ft. or Longer, Maximum of 3 Lengths.
J	Size 3/16" through 3/4" 450 - 650 ft per reel/min of 1 lgth - max of 4 lgths per reel/one lgth less than 100 ft/min lgth 15 ft allowed
	Sizes above 3/4" 400 - 350 ft per reel/min of 1 lgth - max of 3 lgths per reel/one lgth less than 100 ft/min lgth of 15 ft allowed
K	Qty ± 20%, 65% In Lengths Longer Than 45 Ft., 25% In Lengths 25 Ft. to 45 Ft., 10% In Lengths 5 Ft. to 25 Ft., Maximum of 4 Lengths.
L	Qty ± 10%, Minimum Length of 25 Ft., Maximum of 3 Lengths.
M	Qty: ± 20%, Maximum of 2 Lengths, Minimum Length of 50 Feet.
N	Qty ± 0 Ft., Maximum of 2 Lengths, Minimum Length of 10 Feet.
O	One Continuous Length Between 121'-200'.
P	Hose Size> Max 2 Cont Lgths Per Reel
	3/16" 200 ft. x 2 =400 ft
	1/4" 175 ft. x 2 =350 ft
	5/16" 150 ft. x 2 =300 ft
	13/32" 125 ft. x 2 =250 ft
	1/2" 100 ft. x 2 = 200 ft
	5/8" 75 ft. x 2= 150 ft
	7/8" 50 ft. x 2= 100 ft
Q	*Qty: Maximum 1 Continuous Length +/-10%.
R	Hose lengths shall be as long as possible, minimum length is 25 ft. Hose will be stacked on pallets in bales, stretch wrapped and banded.
S	Minimum length of 50 ft., any number of pieces. All lengths to be in 50 ft. increments (i.e. 50,100, 150 etc.)
T	Packaged one continuous length per each or per container.
U	± 10% Minimum Length 15 ft., Maximum of 3 Lengths.
V	Qty +/ 0, 65% in lengths longer than 45 ft., minimum length of 10 ft., 2 lengths under 20 ft. allowed, maximum of 6 lengths.
