Gates 32EFG6KXLL - 71099 Hydraulic Hose

SKU	4651-1758
Weight	4.930000
Hose Id (in)	2
Max Working Pressure	6000
Min Burst Pressure (psi)	24000
Minimum Bend Radius (in)	25
Hose Od (in)	2.8
Brand	Gates

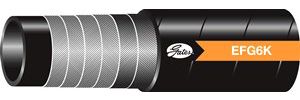

main product photo

Skip to the beginning of the images gallery

Special Order: Typically ships in 5 to 10 business days

$110.16

Sold by the: Carton

Priced per: ft

Purchased in Increments of: 200 ft

Packaging Code: O

Same Hose – Purchase in Different Increments:

Title	Sold By The	Priced Per	Purchase in Increments of
Gates 32EFG6KXCTN - 71100 Hydraulic Hose	Carton	ft	50 ft

Recommended Couplings:

GlobalSpiral™ MAX Pressure Couplings

Gates 32EFG6K Product Features:

Extremely High Pressure

Recommended For:

Extremely high-pressure, high-impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20), and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths.

Cover:

Black, oil resistant, synthetic rubber (Polychloroprene - Type A). Color coded layline. Also available with unique abrasion resistant MegaTuff® cover. See Hose Stock Characteristics.

Reinforcement:

Four (six for -20, -24 and -32) alternating layers of spiraled, high-tensile steel.

Tube:

Black, oil resistant, synthetic rubber (Nitrile - Type C). See Hose Stock Characteristics.

Temperature Range:

-40°F to +250°F (-40°C to +121°C). For water emulsions see Temperature Limits Table.

Meets These Agency Specifications:

ABS - American Bureau of ShippingDNV - Det Norske Veritas (North Sea Floating Vessels), InternationalGL - Germanischer Lloyd's, InternationalDOT - Department of Transportation, USAMSHA 2G - Mine Safety & Health Administration, USAAS - Australian StandardBV - Bureau Veritas (Marine Division), InternationalFRAS - Fire Retardant Anti Static, AustraliaLR - Lloyd's Register, InternationalUSCG - United States Coast GuardSAE - Society of Automotive EngineersISO - International Standards OrganizationEN - European Norm

Standard Industry Specifications:

EN 856 4SP/4SHSAE 100R15ISO 3862 R15

This Product Replaces the Following:

Product ID:46511758 Product Name:71099 32EFG6KXLL

Search

My Cart

Package Code	Standard Bulk Hose Packaging Description
A	Qty ± 20%, 50% In Lengths 40Ft. & Longer, Minimum Length of 10Ft., 2 Lengths Under 20 Ft. Allowed, Maximum of 3 Lengths.
B	Qty ± 10 Ft., Minimum Length of 5 Ft., Maximum of 2 Lengths.
C	Qty ± 10%, 50% In Lengths 40 Ft. & Longer, 50% In Lengths of 10 Ft. to 39 Ft.
D	Qty ± 10%, 65% In Lengths Longer Than 45 Ft., Minimum Length of 10 Ft., 2 Lengths Under 20 Ft. Allowed, Maximum of 6 Lengths.
E	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 4 Lengths.
F	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 3 Lengths.
G	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 4 Lengths.
H	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 3 Lengths.
I	Qty ± 20 Ft., Minimum Length of 20 Ft., 1 Length 40 Ft. or Longer, Maximum of 3 Lengths.
J	Size 3/16" through 3/4" 450 - 650 ft per reel/min of 1 lgth - max of 4 lgths per reel/one lgth less than 100 ft/min lgth 15 ft allowed
	Sizes above 3/4" 400 - 350 ft per reel/min of 1 lgth - max of 3 lgths per reel/one lgth less than 100 ft/min lgth of 15 ft allowed
K	Qty ± 20%, 65% In Lengths Longer Than 45 Ft., 25% In Lengths 25 Ft. to 45 Ft., 10% In Lengths 5 Ft. to 25 Ft., Maximum of 4 Lengths.
L	Qty ± 10%, Minimum Length of 25 Ft., Maximum of 3 Lengths.
M	Qty: ± 20%, Maximum of 2 Lengths, Minimum Length of 50 Feet.
N	Qty ± 0 Ft., Maximum of 2 Lengths, Minimum Length of 10 Feet.
O	One Continuous Length Between 121'-200'.
P	Hose Size> Max 2 Cont Lgths Per Reel
	3/16" 200 ft. x 2 =400 ft
	1/4" 175 ft. x 2 =350 ft
	5/16" 150 ft. x 2 =300 ft
	13/32" 125 ft. x 2 =250 ft
	1/2" 100 ft. x 2 = 200 ft
	5/8" 75 ft. x 2= 150 ft
	7/8" 50 ft. x 2= 100 ft
Q	*Qty: Maximum 1 Continuous Length +/-10%.
R	Hose lengths shall be as long as possible, minimum length is 25 ft. Hose will be stacked on pallets in bales, stretch wrapped and banded.
S	Minimum length of 50 ft., any number of pieces. All lengths to be in 50 ft. increments (i.e. 50,100, 150 etc.)
T	Packaged one continuous length per each or per container.
U	± 10% Minimum Length 15 ft., Maximum of 3 Lengths.
V	Qty +/ 0, 65% in lengths longer than 45 ft., minimum length of 10 ft., 2 lengths under 20 ft. allowed, maximum of 6 lengths.
