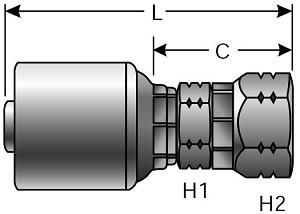

Gates 4G-6FKX - G25910-0406 Hydraulic Hose Fitting
| SKU | 7100-03635 |
|---|---|
| Weight | 0.220000 |
| H1 Stem Hex (mm) | 14 |
| L Length (in) | 2.44 |
| L Length (mm) | 62 |
| H2 Nut Hex Mm | 24 |
| C Cutoff (in) | 1.42 |
| C Cutoff (mm) | 36 |
| Female Thread Id (mm) | 16.5 |
| Male Thread Od (mm) | 18 |
| Part Number 1 | 4G-6FKX |
| Part Number 2 | G25910-0406 |
| Hose Id (in) | 1/4 |
| Hose Id (mm) | 6.4 |
| Brand | Gates |
| Manufacturer | Gates |
Discontinued - No Longer Available
$0.00
Thread Identification:
| Thread Size | M18X1.5 |
| Female Thread I.D. (in) | 0.65 |
| Female Thread I.D. (mm) | 16.5 |
| Male Thread O.D. (in) | 0.709 |
| Male Thread O.D. (mm) | 18 |
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 4M2T Hydraulic Hose Assembly | 1/4 | 0.56 | 6000 | 24000 | 1.5 |
| Gates 4M3K Hydraulic Hose Assembly | 1/4 | 0.48 | 3250 | 13000 | 1.5 |
| Gates 4G2 Hydraulic Hose Assembly | 1/4 | 0.59 | 5800 | 23200 | 4 |
This Product Replaces the Following:
Product ID:710003635
Product Name:G25910-0406 4G-6FKX
Product ID: 710013735 Product Name:G25910-0406 4G-6FKX
UPC: 72053776331
Product ID: 710013735 Product Name:
UPC: 72053776331
