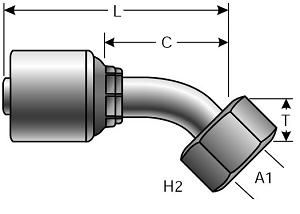

Gates 4G-8FDHORX45 - G25725-0408 Hydraulic Hose Fitting
| SKU | 7100-95745 |
|---|---|
| Weight | 0.160600 |
| L Length (in) | 2.46 |
| L Length (mm) | 62.6 |
| T Drop (in) | 0.64 |
| T Drop (mm) | 16.2 |
| H2 Nut Hex Mm | 19 |
| C Cutoff (in) | 1.44 |
| C Cutoff (mm) | 36.5 |
| Female Thread Id (mm) | 14.5 |
| Male Thread Od (mm) | 16 |
| Part Number 1 | 4G-8FDHORX45 |
| Part Number 2 | G25725-0408 |
| Hose Id (in) | 1/4 |
| Hose Id (mm) | 6.4 |
| Brand | Gates |
| Manufacturer | Gates |
Special Order: Typically ships in 5 to 10 business days
$29.30
- Buy 20 for $27.46 each and save 6%
- Buy 40 for $26.49 each and save 10%
Thread Identification:
| Thread Size | M16X1.5 |
| Female Thread I.D. (in) | 0.571 |
| Female Thread I.D. (mm) | 14.5 |
| Male Thread O.D. (in) | 0.63 |
| Male Thread O.D. (mm) | 16 |
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 4M2T Hydraulic Hose Assembly | 1/4 | 0.56 | 6000 | 24000 | 1.5 |
| Gates 4M3K Hydraulic Hose Assembly | 1/4 | 0.48 | 3250 | 13000 | 1.5 |
| Gates 4G2 Hydraulic Hose Assembly | 1/4 | 0.59 | 5800 | 23200 | 4 |
This Product Replaces the Following:
Product ID:710095745
Product Name:G25725-0408 4G-8FDHORX45
Product ID: 710091865 Product Name:4G-8FDHORX45
UPC: 72053699975
Product ID: 710091865 Product Name:
UPC: 72053699975
