Gates 6EFG4KX25FT - 85477 Hydraulic Hose

SKU	4651-4005
Weight	13.550000
Hose Id (in)	3/8
Max Working Pressure	4000
Min Burst Pressure (psi)	16000
Minimum Bend Radius (in)	2.5
Hose Od (in)	0.8
Brand	Gates

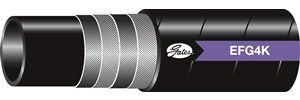

main product photo

Skip to the beginning of the images gallery

Special Order: Typically ships in 5 to 10 business days

$286.92

Buy 2 for $268.69 each and save 6%
Buy 4 for $258.95 each and save 10%

Sold by the: 25 ft Box

Priced per: 25 ft Box

Packaging Code: T

Same Hose – Purchase in Different Increments:

Title	Sold By The	Priced Per	Purchase in Increments of
Gates 6EFG4KX50FT - 85491 Hydraulic Hose	50 ft Box	50 ft Box
Gates 6EFG4KXCTN - 70811 Hydraulic Hose	Carton	ft	100 ft

Recommended Couplings:

GlobalSpiral™ Couplings or Stainless Steel Couplings "S" Series

Gates 6EFG4K Product Features:

Extremely High Pressure

Recommended For:

Extremely high-pressure, high-impulse applications. Exceeds all requirements of ISO 18752 Grade D, SAE 100R12, EN 856 R12 and ISO 3862 Type R12. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths.

Cover:

Black, oil resistant, synthetic rubber (Polychloroprene - Type A), with color coded layline. Also available with unique abrasion resistant MegaTuff® cover. See Hose Stock Characteristics.

Reinforcement:

Four alternating layers of spiraled, high-tensile steel wire.

Tube:

Black, oil resistant, synthetic rubber (Nitrile - Type C). See Hose Stock Characteristics.

Temperature Range:

-40°F to +250°F (-40°C to +121°C). For water emulsions see Temperature Limits Table.

Meets These Agency Specifications:

ABS - American Bureau of ShippingDNV - Det Norske Veritas (North Sea Floating Vessels), InternationalDIN - Deutsch Industry Norm, InternationalGL - Germanischer Lloyd's, InternationalMSHA 2G - Mine Safety & Health Administration, USAAS - Australian StandardBV - Bureau Veritas (Marine Division), InternationalFRAS - Fire Retardant Anti Static, AustraliaLR - Lloyd's Register, InternationalUSCG - United States Coast GuardSAE - Society of Automotive EngineersISO - International Standards OrganizationEN - European Norm

Standard Industry Specifications:

SAE 100R12ISO 3862 R12EN 856 R12

This Product Replaces the Following:

Product ID:46514005 Product Name:85477 6EFG4KX25FT
Product ID: 46511362 Product Name: 85568 6C12 X30FT

Search

My Cart

Package Code	Standard Bulk Hose Packaging Description
A	Qty ± 20%, 50% In Lengths 40Ft. & Longer, Minimum Length of 10Ft., 2 Lengths Under 20 Ft. Allowed, Maximum of 3 Lengths.
B	Qty ± 10 Ft., Minimum Length of 5 Ft., Maximum of 2 Lengths.
C	Qty ± 10%, 50% In Lengths 40 Ft. & Longer, 50% In Lengths of 10 Ft. to 39 Ft.
D	Qty ± 10%, 65% In Lengths Longer Than 45 Ft., Minimum Length of 10 Ft., 2 Lengths Under 20 Ft. Allowed, Maximum of 6 Lengths.
E	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 4 Lengths.
F	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 3 Lengths.
G	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 4 Lengths.
H	Qty ± 0 Ft., Minimum Length of 10 Ft., Maximum of 3 Lengths.
I	Qty ± 20 Ft., Minimum Length of 20 Ft., 1 Length 40 Ft. or Longer, Maximum of 3 Lengths.
J	Size 3/16" through 3/4" 450 - 650 ft per reel/min of 1 lgth - max of 4 lgths per reel/one lgth less than 100 ft/min lgth 15 ft allowed
	Sizes above 3/4" 400 - 350 ft per reel/min of 1 lgth - max of 3 lgths per reel/one lgth less than 100 ft/min lgth of 15 ft allowed
K	Qty ± 20%, 65% In Lengths Longer Than 45 Ft., 25% In Lengths 25 Ft. to 45 Ft., 10% In Lengths 5 Ft. to 25 Ft., Maximum of 4 Lengths.
L	Qty ± 10%, Minimum Length of 25 Ft., Maximum of 3 Lengths.
M	Qty: ± 20%, Maximum of 2 Lengths, Minimum Length of 50 Feet.
N	Qty ± 0 Ft., Maximum of 2 Lengths, Minimum Length of 10 Feet.
O	One Continuous Length Between 121'-200'.
P	Hose Size> Max 2 Cont Lgths Per Reel
	3/16" 200 ft. x 2 =400 ft
	1/4" 175 ft. x 2 =350 ft
	5/16" 150 ft. x 2 =300 ft
	13/32" 125 ft. x 2 =250 ft
	1/2" 100 ft. x 2 = 200 ft
	5/8" 75 ft. x 2= 150 ft
	7/8" 50 ft. x 2= 100 ft
Q	*Qty: Maximum 1 Continuous Length +/-10%.
R	Hose lengths shall be as long as possible, minimum length is 25 ft. Hose will be stacked on pallets in bales, stretch wrapped and banded.
S	Minimum length of 50 ft., any number of pieces. All lengths to be in 50 ft. increments (i.e. 50,100, 150 etc.)
T	Packaged one continuous length per each or per container.
U	± 10% Minimum Length 15 ft., Maximum of 3 Lengths.
V	Qty +/ 0, 65% in lengths longer than 45 ft., minimum length of 10 ft., 2 lengths under 20 ft. allowed, maximum of 6 lengths.
