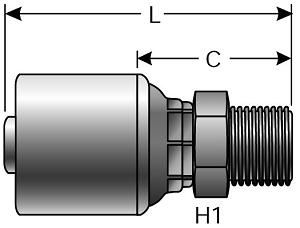

Gates 6G-6MBSPT - G25795-0606 Hydraulic Hose Fitting
| SKU | 7100-91105 |
|---|---|
| Weight | 0.200000 |
| H1 Stem Hex (mm) | 19 |
| L Length (in) | 1.95 |
| L Length (mm) | 49.5 |
| C Cutoff (in) | 1.03 |
| C Cutoff (mm) | 26.1 |
| Female Thread Id (mm) | 15.1 |
| Male Thread Od (mm) | 16.7 |
| Part Number 1 | 6G-6MBSPT |
| Part Number 2 | G25795-0606 |
| Hose Id (in) | 3/8 |
| Hose Id (mm) | 9.5 |
| Brand | Gates |
| Manufacturer | Gates |
Discontinued - No Longer Available
$0.00
Thread Identification:
| Thread Size | 3/8-19 |
| Female Thread I.D. (in) | 19/32 (0.594) |
| Female Thread I.D. (mm) | 15.1 |
| Male Thread O.D. (in) | 21/32 (0.656) |
| Male Thread O.D. (mm) | 16.7 |
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 6M2T Hydraulic Hose Assembly | 3/8 | 0.7 | 5000 | 20000 | 2 |
| Gates 6M3K Hydraulic Hose Assembly | 3/8 | 0.63 | 3250 | 13000 | 2 |
| Gates 6G2 Hydraulic Hose Assembly | 3/8 | 0.74 | 4800 | 19200 | 5 |
This Product Replaces the Following:
Product ID:710091105
Product Name:G25795-0606 6G-6MBSPT
UPC: 72053205985
