Gates 6G-8FG - G25561-0608 Hydraulic Hose Fitting
| SKU | 7100-09615 |
|---|---|
| Weight | 0.150000 |

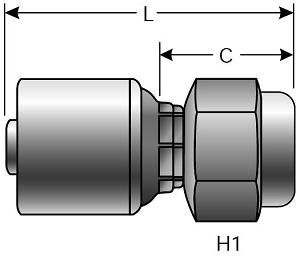

| L Length (in) | 1.93 |
| L Length (mm) | 49.1 |
| C Cutoff (in) | 0.83 |
| C Cutoff (mm) | 21.2 |
| Part Number 1 | 6G-8FG |
| Part Number 2 | G25561-0608 |
| Hose Id (in) | 3/8 |
| Hose Id (mm) | 9.5 |
| Brand | Gates |
| Manufacturer | Gates |
Discontinued - No Longer Available
$0.00
Thread Identification:
| Thread Size | 1/2-27 |
Order a Made-to-Order Hydraulic Hose Assembly with the Fitting:
| Hose Type | Hose I.D. (in) | Hose O.D. (in) | Max Working Pressure (psi) | Min Burst Pressure (psi) | Min Bend Radius (in) |
|---|---|---|---|---|---|
| Gates 6M2T Hydraulic Hose Assembly | 3/8 | 0.7 | 5000 | 20000 | 2 |
| Gates 6M3K Hydraulic Hose Assembly | 3/8 | 0.63 | 3250 | 13000 | 2 |
| Gates 6G2 Hydraulic Hose Assembly | 3/8 | 0.74 | 4800 | 19200 | 5 |
This Product Replaces the Following:
Product ID:710009615
Product Name:G25561-0608 6G-8FG
UPC: 72053545746
